Rodless Cable Cylinders

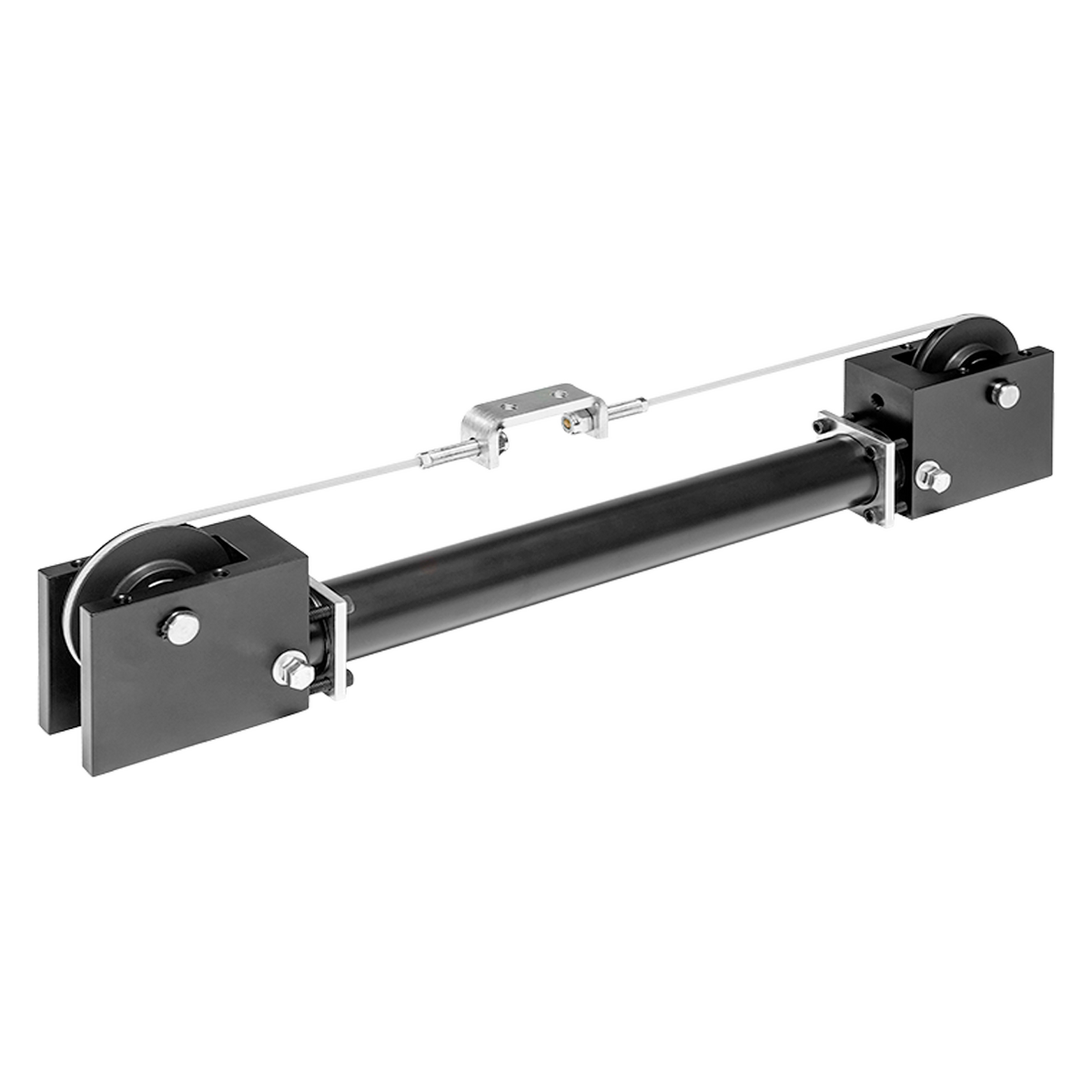

Double Acting Cable Cylinders from W.C. Branham stroke along their own body length and offers up to a 50% space saving footprint when compared with traditional rod-type cylinders that extend a rod when actuating.
- Cable Cylinders are the best value at price per inch of stroke.
- Cable Cylinders can be configured with extra cable length for the purpose of mounting the main body away from work area.
- Cable Cylinders are designed for externally guided loads and can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.
W.C. Branham has been manufacturing cable cylinders since 1981.
Specifications
(click  for more details)
Showing Imperial Measurements - Switch to Metric Measurements
- 9 bore sizes from 1/2 to 5 inches, Strokes to 44 feet
- Quality manufactured cable seal glands, easy install
- Black anodized aluminum tubing, corrosion resistant
- Moves loads that are externally guided and supported
- Adjustable cushioning on 1.5 thru 5 inch bores
- Fixed orifice cushioning on .75 and 1 inch bores
- Mil-spec rated cable providing millions of continuous cycles
- 5:1 safety factor
- Viton® seals for added performance optional
- Hydraulic service rated
- Mounting interchangeable with other brands
- Interchangeable cable and seal field repair crossover kits
- Low breakaway configurations
- Optional switches and sensors
Showing Metric Measurements - Switch to Imperial Measurements
Sorry, no metric information available for this product group. Showing imperial measurements instead...
- 9 bore sizes from 1/2 to 5 inches, Strokes to 44 feet
- Quality manufactured cable seal glands, easy install
- Black anodized aluminum tubing, corrosion resistant
- Moves loads that are externally guided and supported
- Adjustable cushioning on 1.5 thru 5 inch bores
- Fixed orifice cushioning on .75 and 1 inch bores
- Mil-spec rated cable providing millions of continuous cycles
- 5:1 safety factor
- Viton® seals for added performance optional
- Hydraulic service rated
- Mounting interchangeable with other brands
- Interchangeable cable and seal field repair crossover kits
- Low breakaway configurations
- Optional switches and sensors
Products Available
| |
Product # |
Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Effective Area, in. sq. |
|
1050-0000 |
1050 |
1/2 |
None |
19 |
.19 |
|
1070-0000 |
1070 |
3/4 |
None |
44 |
.44 |
|
1070-0004 |
1070RS |
3/4 |
Reed Switches |
44 |
.44 |
|
1070-0300 |
1070T |
3/4 |
Tensioner |
44 |
.44 |
|
1101-0000 |
1101 |
1.0 |
None |
78 |
.78 |
|
1101-0005 |
1101RS |
1.0 |
Reed Switches |
78 |
.78 |
|
1101-0019 |
1101M |
1.0 |
Piston Magnet |
78 |
.78 |
|
1101-0302 |
1101T |
1.0 |
Tensioner |
78 |
.78 |
|
1101-0303 |
1101TRS |
1.0 |
Tensioner, Reed Switches |
78 |
.78 |
|
1101-0304 |
1101T2 |
1.0 |
2 Tensioners |
78 |
.78 |
|
1151-0000 |
1151 |
1.5 |
None |
174 |
1.74 |
|
1151-0011 |
1151RS |
1.5 |
Reed Switches |
174 |
1.74 |
|
1151-0015 |
1151M |
1.5 |
Piston Magnet |
174 |
1.74 |
|
1151-0300 |
1151T |
1.5 |
Tensioner |
174 |
1.74 |
|
1151-0301 |
1151TRS |
1.5 |
Tensioner, Reed Switches |
174 |
1.74 |
|
1151-0500 |
1151TB |
1.5 |
Tensioner, Brake |
174 |
1.74 |
|
1151-0550 |
1151TBRS |
1.5 |
Tensioner, Brake, Switches |
174 |
1.74 |
|
1151-0700 |
1151T2 |
1.5 |
2 Tensioners |
174 |
1.74 |
|
1203-0000 |
1203 |
2.0 |
None |
309 |
3.09 |
|
1203-0014 |
1203RS |
2.0 |
Reed Switches |
309 |
3.09 |
|
1203-0017 |
1203M |
2.0 |
Piston Magnet |
309 |
3.09 |
|
1203-0300 |
1203T |
2.0 |
Tensioner |
309 |
3.09 |
|
1203-0302 |
1203T2 |
2.0 |
2 Tensioners |
309 |
3.09 |
|
1203-0303 |
1203TRS |
2.0 |
Tensioner, Reed Switches |
309 |
3.09 |
|
1203-0500 |
1203TB |
2.0 |
Tensioner, Brake |
309 |
3.09 |
|
1203-0501 |
1203TBRS |
2.0 |
Tensioner, Brake, Switches |
309 |
3.09 |
|
1203-0512 |
1203TFSB |
2.0 |
Tensioner, PFS47 Brake |
309 |
3.09 |
|
1206-0000 |
1206 |
2.0 |
500 PSI Heavy Duty |
309 |
3.09 |
|
1206-0001 |
1206TRS |
2.0 |
500 PSI, Tensioner, Switches |
309 |
3.09 |
|
1206-0002 |
1206RS |
2.0 |
500 PSI, Reed Switches |
309 |
3.09 |
|
1206-0011 |
1206M |
2.0 |
500 PSI, Piston Magnet |
309 |
3.09 |
|
1206-0300 |
1206T |
2.0 |
500 PSI, Tensioner |
309 |
3.09 |
|
1206-0301 |
1206T2 |
2.0 |
500 PSI, Tensioners, 2 |
309 |
3.09 |
|
1206-0500 |
1206TB |
2.0 |
500 PSI, Tensioner, Brake |
309 |
3.09 |
|
1206-0502 |
1206TBRS |
2.0 |
500, Tens., Brake, Switches |
309 |
3.09 |
|
1251-0000 |
1251 |
2.5 |
None |
486 |
4.86 |
|
1251-0300 |
1251T |
2.5 |
Tensioner |
486 |
4.86 |
|
1251-0301 |
1251T2 |
2.5 |
2 Tensioners |
486 |
4.86 |
|
1251-0302 |
1251TRS |
2.5 |
Tensioner, Reed Switches |
486 |
4.86 |
|
1251-0400 |
1251RS |
2.5 |
Reed Switches |
486 |
4.86 |
|
1251-0401 |
1251M |
2.5 |
Piston Magnet |
486 |
4.86 |
|
1251-0500 |
1251TB |
2.5 |
Tensioner, Brake |
486 |
4.86 |
|
1251-0501 |
1251TBRS |
2.5 |
Tensioner, Brake, Switches |
486 |
4.86 |
|
1301-0000 |
1301 |
3.0 |
None |
699 |
6.99 |
|
1301-0009 |
1301M |
3.0 |
Piston Magnet |
699 |
6.99 |
|
1301-0200 |
1301RS |
3.0 |
Reed Switches |
699 |
6.99 |
|
1301-0300 |
1301T |
3.0 |
Tensioner |
699 |
6.99 |
|
1301-0301 |
1301TRS |
3.0 |
Tensioner, Reed Switches |
699 |
6.99 |
|
1301-0302 |
1301T2 |
3.0 |
2 Tensioners |
699 |
6.99 |
|
1301-0500 |
1301TB |
3.0 |
Tensioner, Brake |
699 |
6.99 |
|
1301-0501 |
1301TBRS |
3.0 |
Tensioner, Brake, Switches |
699 |
6.99 |
|
1401-0000 |
1401 |
4.0 |
None |
1249 |
12.49 |
|
1401-0030 |
1401RS |
4.0 |
Reed Switches |
1249 |
12.49 |
|
1401-0063 |
1401M |
4.0 |
Piston Magnet |
1249 |
12.49 |
|
1401-0300 |
1401T2 |
4.0 |
2 Tensioners |
1249 |
12.49 |
|
1401-0302 |
1401TRS |
4.0 |
Tensioner, Reed Switches |
1249 |
12.49 |
|
1401-0303 |
1401T |
4.0 |
Tensioner |
1249 |
12.49 |
 |
1401-0320 |
1401TL |
4.0 |
2.0 in. Stroke Tensioner |
1249 |
12.49 |
|
1401-0500 |
1401TB |
4.0 |
Tensioner, Brake |
1249 |
12.49 |
|
1401-0502 |
1401TBRS |
4.0 |
Tensioner, Brake, Switches |
1249 |
12.49 |
|
1501-0001 |
1501 |
5.0 |
None |
1920 |
19.20 |
|
|
