Rodless Cable Cylinders Air Tensioner/Brake Models

Cable Cylinders are the best value at price per inch of stroke and can be configured with extra cable length for the purpose of mounting the main body away from work area.

Double Acting Cable Cylinders from W.C. Branham stroke along their own body length and offers up to a 50% space saving footprint when compared with traditional rod-type cylinders that extend a rod when actuating.

Cable Cylinders are designed for externally guided loads and can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.

Request a Quote
Click image to enlarge

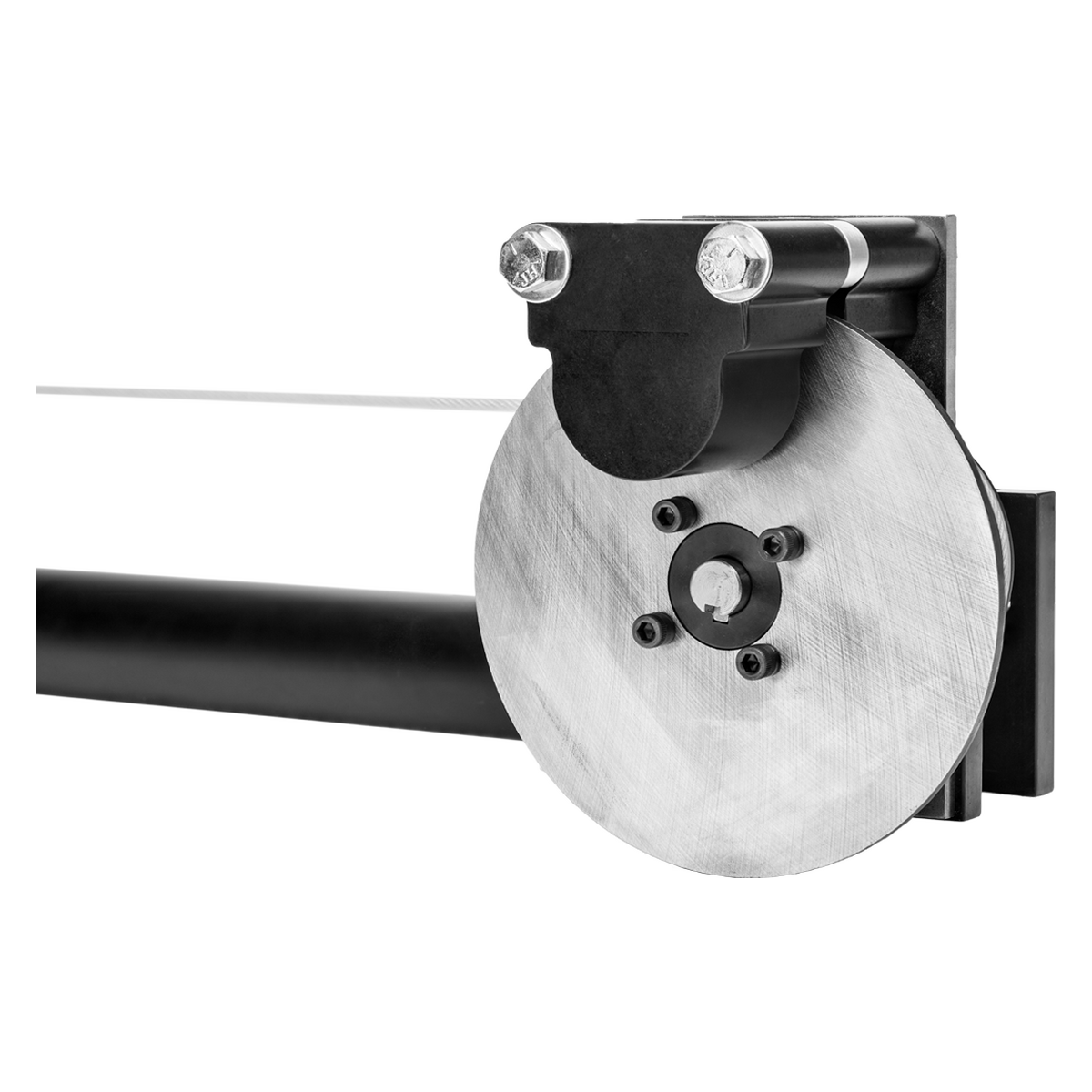

Model 1151TB - 1.5" Bore
Model 1151TB
Model 1203TB - 2" Bore
Model 1203TB

1151TB | 1.5" Bore

Product # Bore, in. Option(s) Force@100 PSI, lbs. Effective Area, in. sq.
1151-0500 1.5 Tensioner, Brake 174 1.74
1151-0550 1.5 Tensioner, Brake, Switches 174 1.74

1203TB | 2" Bore

Product # Bore, in. Option(s) Force@100 PSI, lbs. Effective Area, in. sq.
1203-0500 2.0 Tensioner, Brake 309 3.09
1203-0501 2.0 Tensioner, Brake, Switches 309 3.09
1203-0512 2.0 Tensioner, PFS47 Brake 309 3.09

1206TB High Pressure | 2" Bore

Product # Bore, in. Option(s) Force@500 PSI, lbs. Effective Area, in. sq.
1206-0500 2.0 500 PSI, Tensioner, Brake 309 3.09
1206-0502 2.0 500, Tens., Brake, Switches 309 3.09

1251TB | 2.5" Bore

Product # Bore, in. Option(s) Force@100 PSI, lbs. Effective Area, in. sq.
1251-0500 2.5 Tensioner, Brake 486 4.86
1251-0501 2.5 Tensioner, Brake, Switches 486 4.86

1301TB | 3" Bore

Product # Bore, in. Option(s) Force@100 PSI, lbs. Effective Area, in. sq.
1301-0500 3.0 Tensioner, Brake 699 6.99
1301-0501 3.0 Tensioner, Brake, Switches 699 6.99

1401TB | 4" Bore

Product # Bore, in. Option(s) Force@100 PSI, lbs. Effective Area, in. sq.
1401-0500 4.0 Tensioner, Brake 1249 12.49
1401-0502 4.0 Tensioner, Brake, Switches 1249 12.49
1401-0504 4.0 Tensioner, Brake, Triple Port Heads 1249 12.49

GCC1151TB | 1.5" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1151-0804 1.5 1.74 174 Tensioner, Brake, Switches
1151-0806 1.5 1.74 174 Tensioner, Brake
1151-0818 1.5 1.74 174 Tensioner, Brake, Magnet

GCC1203TB | 2.0" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1203-0803 2.0 3.09 309 Tensioner, Brake, Switches
1203-0806 2.0 3.09 309 Tensioner, Brake

GCC1206TB High Pressure | 2.0" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1206-0810 2.0 3.09 309 500, Tens., Brake, Switches
1206-0820 2.0 3.09 309 500 PSI, Tensioner, Brake

GCC1251TB | 2.5" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1251-0811 2.5 4.86 486 Tensioner, Brake
1251-0813 2.5 4.86 486 Tensioner, Brake, Switches

GCC1301TB | 3.0" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1301-0807 3.0 6.99 699 Tensioner, Brake
1301-0808 3.0 6.99 699 Tensioner, Brake
1301-0809 3.0 6.99 699 Tensioner, Brake, Switches

GCC1401TB | 4.0" Bore

Product # Model # Bore, in. Eff. Area, in.sq Force@100 PSI, lbs. Option(s)
1401-0809 4.0 12.49 1249 Tensioner, Brake
1401-0810 4.0 12.49 1249 Tensioner, Brake, Switches
1401-0820 4.0 12.49 1249 Tensioner, Brake
