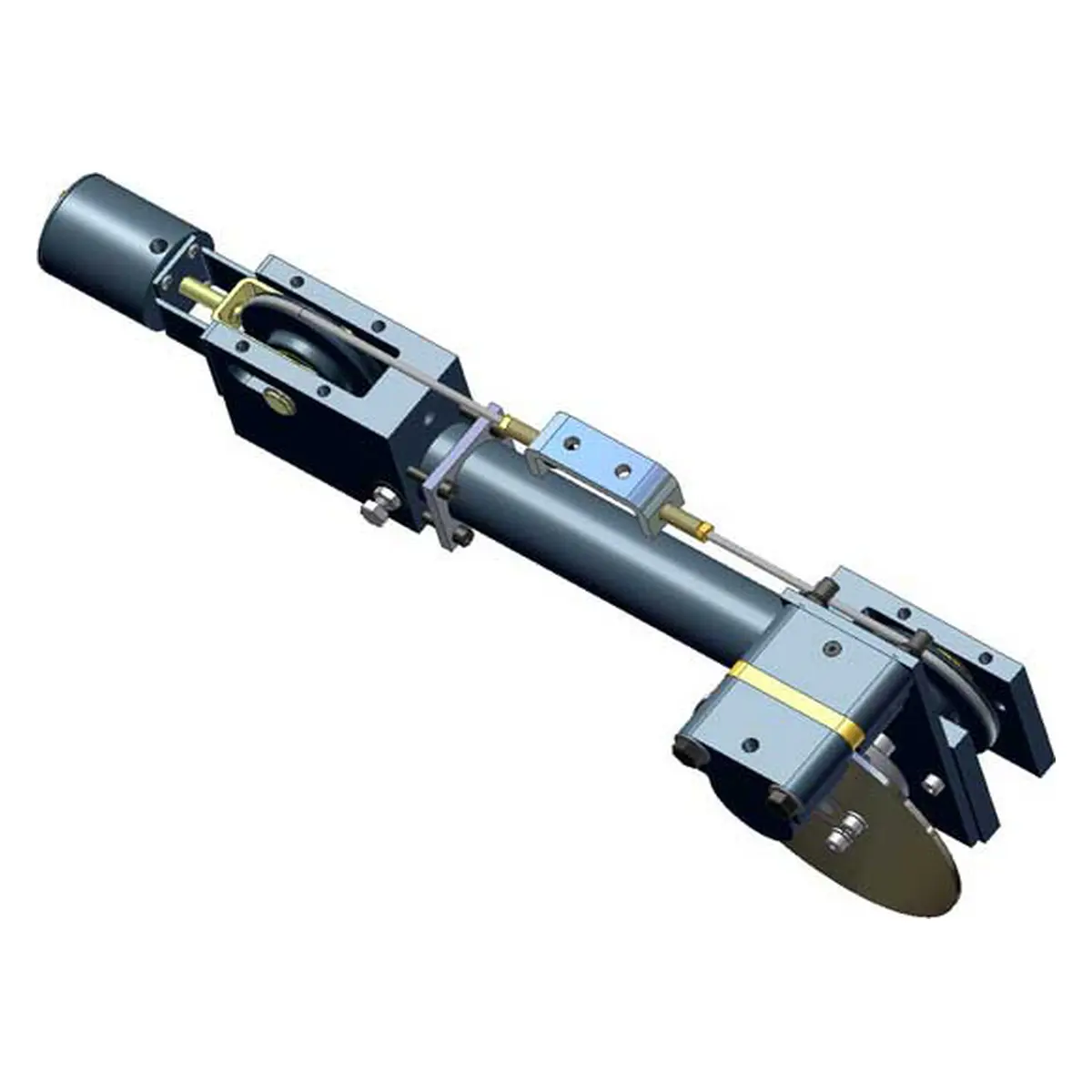

1151-0550
Model: 1151TBRS
Double Acting Cable Cylinder with power stroke in both directions, 1.5 inch bore w/ automatic tensioner, caliper disc brake and (2) normally open reed switches.
- Maximum pressure: 100 PSI
- Operating temperature range: 20º to 140º F.
- Adjustable cushions
- Mounting interchangeable with T-O-M Brand Model CC15
| Cylinder Type | Rodless |
| Cylinder Style | Cable |
| Actuation | Double |
| Tensioner | 1 |
| Brake | Yes |
| Bore Diameter (in) | 1.5 |
| Body Construction | Anodized Aluminum |
| Guide | No |
| Mounting Style | End |
| Seal Material | Buna-N |
| Port Thread | Imperial |
| Port location | Bottom |
| Sensor Magnet | Yes |
| Sensors | Reed |
| Brand | ULTRICYL |
| Cushions | Adjustable |
| Made in USA | Yes |
| Port Size | 1/4-18 NPTF |
| Pressure Maximum (psi) | 100 |
