4802-0014

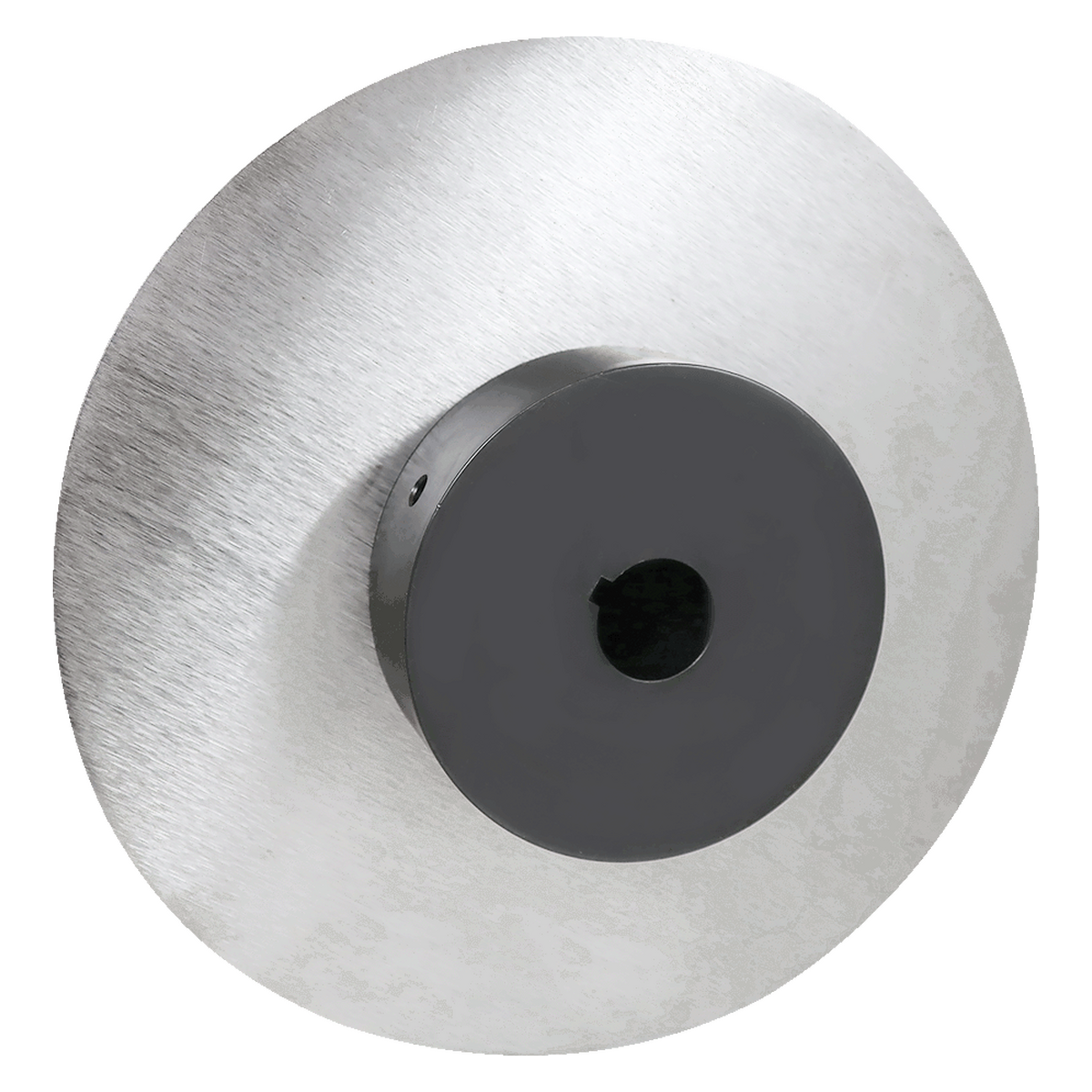

8.0 in. diameter fixed hub and disc assembly, .875-inch bore. Fits all W.C. Branham and T-O-M Brand caliper disc brakes with 'A' brake spacer designator.

  • Carbon 1010 steel
  • Flat to within .020 inch
  • Stress Relieved
  • Blanchard ground 80 RMS finish
  • Rated up to 300º F.
  • 1215 Cold rolled steel hub material
  • Socket head cap screws
  • Keyway set screws

Estimated Lead-Time: 5-7 business days ARO @ Qty < 4 pcs.

Bore Diameter (in) 0.875
Description Fixed Disc/Hub Assy
Disc Thick. (in.)/Spacer 5/32 / A
Key Size (in.) 3/16 x 3/16
$211.58
