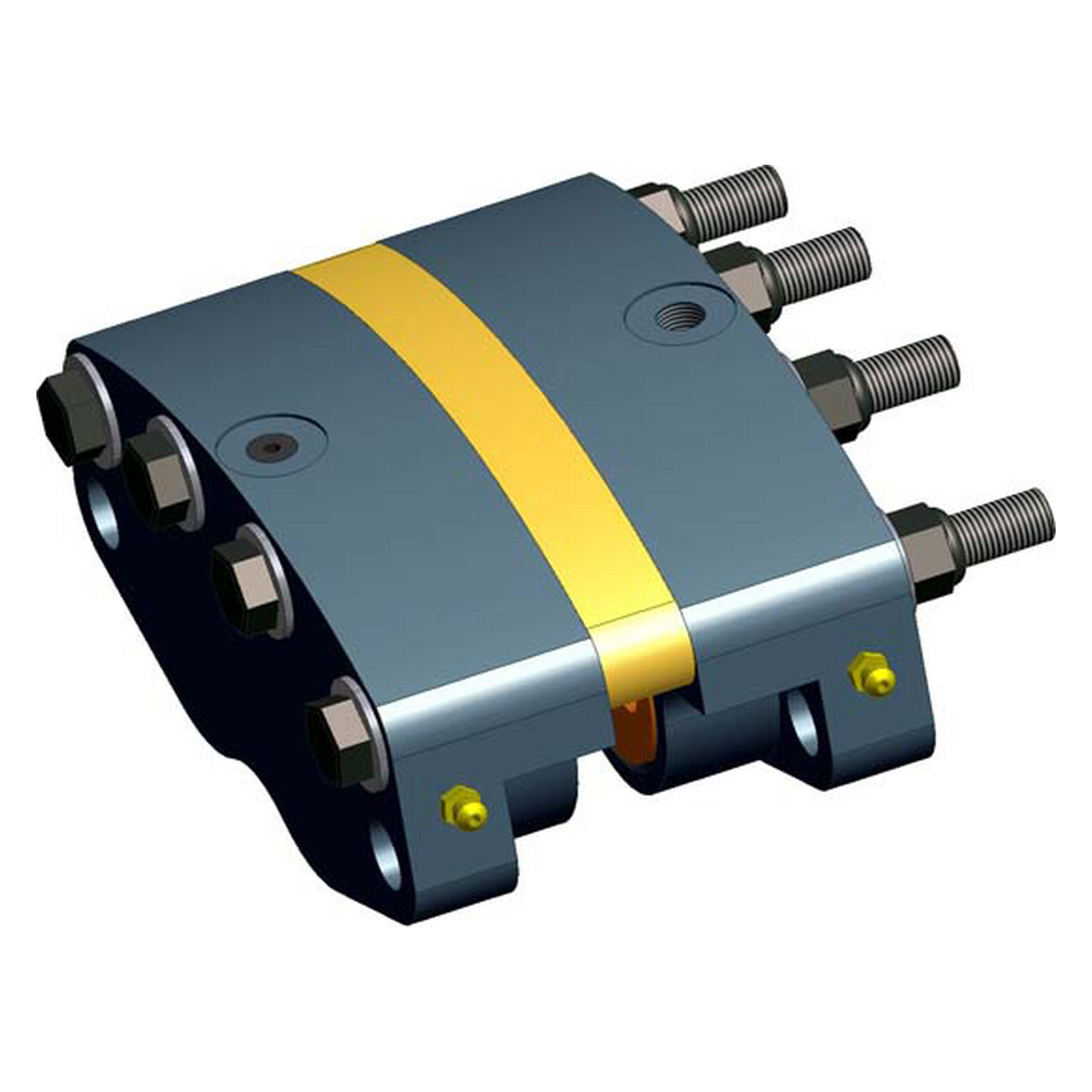

200 series, hydraulic double acting caliper disc brake w/ spring retractable pistons and EPR seals, sized for 1/2 inch thick brake disc.
- Aluminum Construction
- Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
- Fits on Brake Discs up to 16" Diameter
- Replaceable Friction Pads (WCB p/n 4000-1052)
- U.S. Dept. of Defense Approved Friction Pads
- Dynamic torque (inch/lb): 288 lbf per 100 psi x braking radius
- Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
|Description||Double Acting, Fixed Mount. Use Fixed or Floating Disc|
|Additional Info||Quad Spring Retractable Pistons, EPR Seals|
|Disc Thick. (in.)||1/2|
|Fluid Type||Dot 3 Brake Fluid|
|Max. Pressure, PSI||1500|
|Wearable Friction Material||0.95 cu. in.|
|Piston Dia.||1.625 in.|
|Total Pad Area||8.00 sq. in.|
|Fluid Displacement||0.124 cu. in.|
