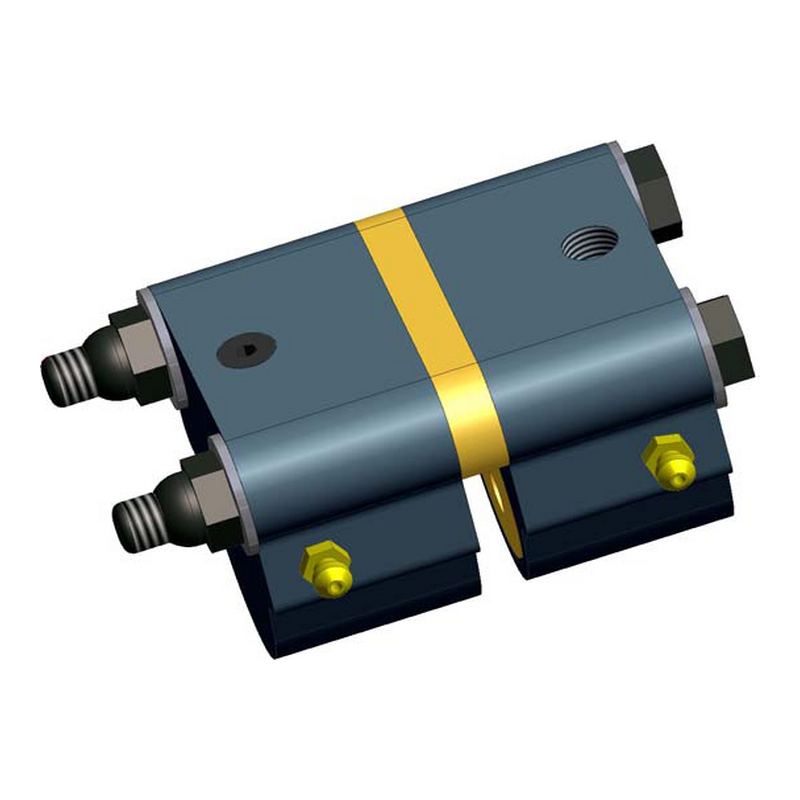

Model: H38DARG

38 series, hydraulic double acting caliper disc brake w/ retractable pistons, EPR seals and sized for 5/32 inch thick brake disc.

This item has longer than normal lead-times currently. Please contact factory for updated delivery information.

  • Aluminum Construction
  • Hardcoated
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads (WCB p/n 4000-1320)
  • Dynamic torque (inch/lb) 70 lbf per 100 psi x braking radius
  • Power Factor: 38 Series 1X, 47 Series 2X, 200 Series 4X


Model # H38DARG
Description Double Acting, Fixed Mount. Use Fixed or Floating Disc
Additional Info Dual Spring Retractable Pistons, EPR Seals
Disc Thick. (in.) 5/32
Fluid Type Dot 3 Brake Fluid
