4004-0032

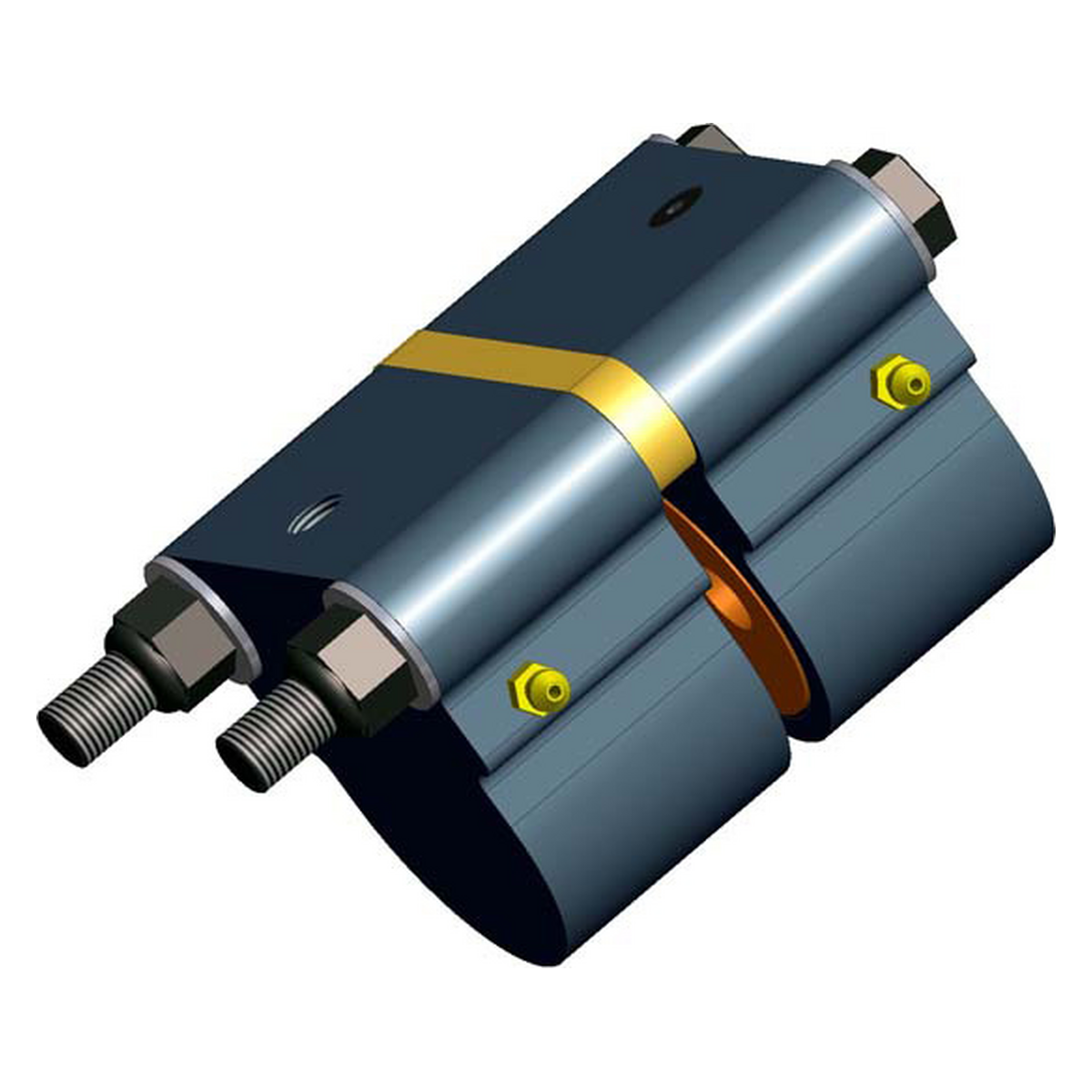

Model: H47DA

47 series, hydraulic double acting caliper disc brake sized for 5/32 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads (WCB p/n 4000-1052)
  • U.S. Dept. of Defense Approved Friction Pads
  • Dynamic torque (inch/lb): 144 lbf per 100 psi x braking radius
  • Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X

Attributes

DescriptionDouble Acting, Fixed Mount. Use Fixed or Floating Disc
Additional InfoDual Non-Retractable Pistons
Disc Thick. (in.)5/32
Fluid TypeHydraulic Oil
Max. Pressure, PSI1000
SealsBuna-N
Wearable Friction Material0.83 cu. in.
Piston Dia.1.625 in.
Total Pad Area4.00 sq. in.
Fluid Displacement0.062 cu. in.
