4004-0763

Model: FS38SBF

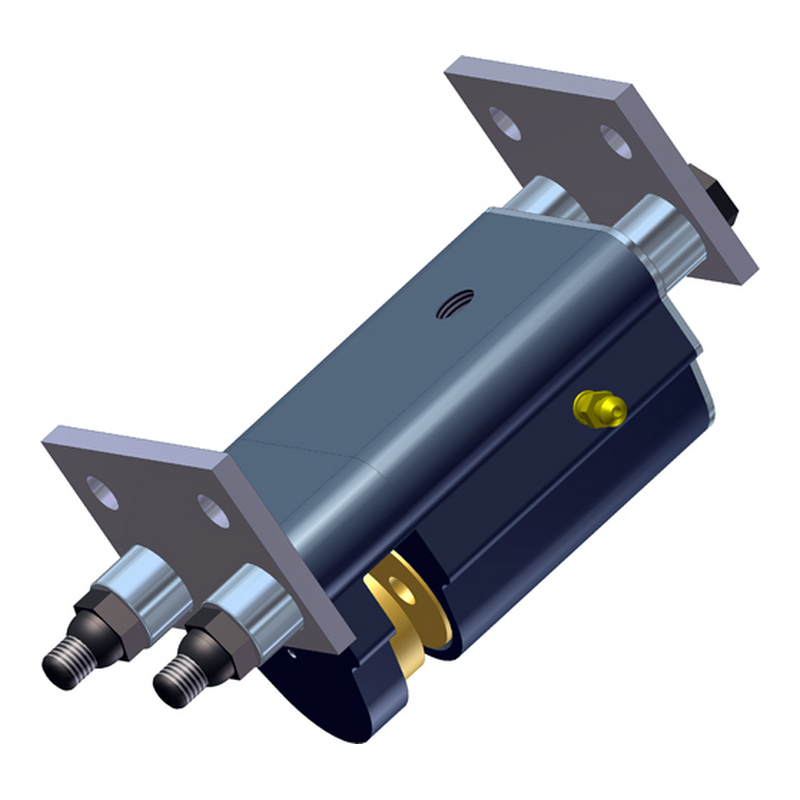

38 series, hydraulic spring applied, single acting caliper disc brake w/ float plates, sized for 1/4 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • 680 PSI Release Pressure
  • Belleville Disc Spring Stack
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads
  • Non-Asbestos Friction Material
  • 233 lbf (1036 N) Maximum Tangential Force

Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear.

Additional Info Single Piston. Spring Applied 680 PSI Release
Description Single Acting, Floating Mount. Used Fixed Disc
Disc Thick. (in.) 1/4
Model # FS38SBF
Tangential Force 233 lbf, 1036 N
Click image to enlarge
