4005-0117

Model: FS410IF-EP

410 extended friction pad series, spring applied, low pressure hydraulic 288 PSI release, single acting caliper disc brake, sized for 3/16 inch thick brake disc.

  • Cast Aluminum Construction
  • Hardcoated Housings
  • 288 PSI Release Pressure
  • Dual Belleville Disc Spring Stacks
  • 12.0 inch Minimum Brake Disc Diameter to Unlimited
  • .45 Coefficient of Friction #951023
  • Buna N Seals
  • Non-Asbestos Friction Material
  • Replaceable Friction Pads
  • 1859 lb. Maximum Tangential Force
  • 26,273 in. lb. Braking Torque using 30 inch Diameter Brake Disc
  • 4130 lb. Clamping Force
  • 7.86 cu. in. Fluid Displacement initial fill and max displacement at full pad wear
  • .985 cu. in. Fluid Displacement at minimum .060 stroke
Additional Info Dual Pistons. Spring Applied 288 PSI Release
Description Single Acting, Floating Mount. Use Fixed Disc
Disc Thick. (in.) 3/16
Model # FS410IF-EP
Tangential Force 1859 lbf, 8269 N
Request a Quote Configure Your CAD File

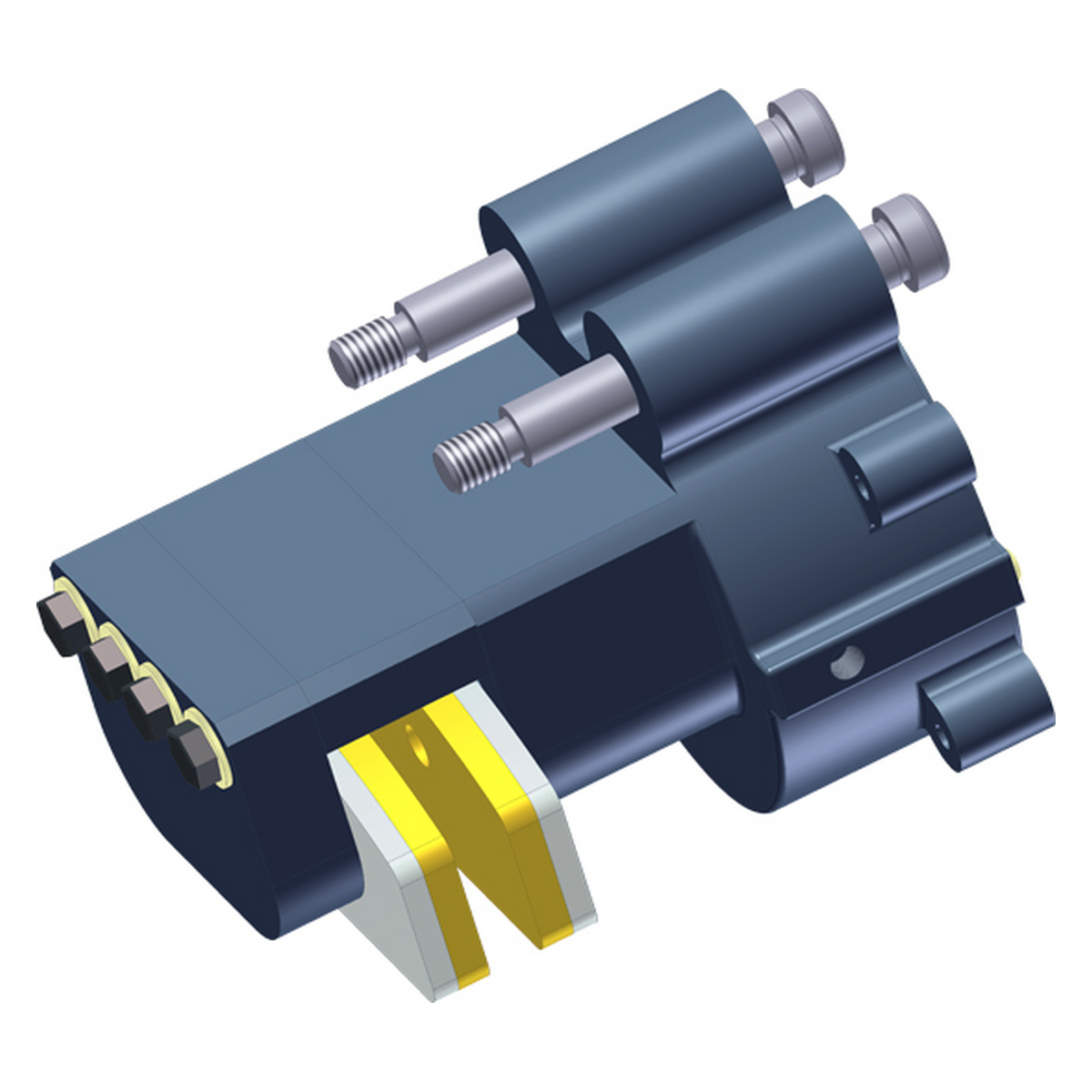

Click image to enlarge
