FS541

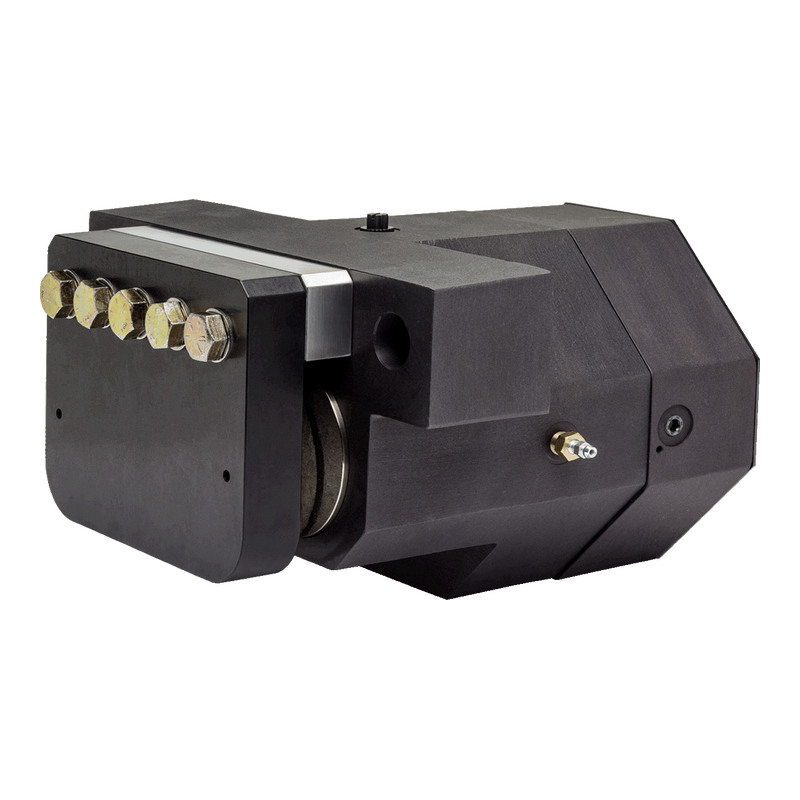

Dual Bore Hydraulic Spring Applied Brake

Salient Characteristics

  • 300 PSI release pressure | Single Acting Dual Belleville Disc Spring Stack | 6,419 lb. Tangential Force at zero friction pad wear | 14,264 lb. of Clamping Force | 83,659 in. lbs. F. braking torque using 30 inch disc diameter at maximum tangential force | 28.12 sq. in. total friction pad area | Sized for brake discs ranging from 16 inch diameter to unlimited.

Engineering note: Spring applied brakes are intended for use as an emergency stop or static holding device. It is not suggested to use in continuous slip applications as torque capacity is directly related to friction pad wear. Consult Factory.

Request a Quote
Click image to enlarge

FS541S Low Pressure Dual Bore Series

Product # Model # Description Additional Info Disc Thick. (in.) Tangential Force
4006-0014 FS541SB Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 1/4 6419 lbf, 28,565 N
4006-0015 FS541SL Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 3/8 6419 lbf, 28,565 N
4006-0016 FS541SE Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 1/2 6419 lbf, 28,565 N
4006-0017 FS541SJ Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 5/8 6419 lbf, 28,565 N
4006-0018 FS541ST Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 3/4 6419 lbf, 28,565 N
4006-0019 FS541SO Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 1.0 6419 lbf, 28,565 N
4006-0042 FS541SQ Single Acting, Floating Mount. Use Fixed Disc Dual Piston. Spring Applied 300 PSI Release 1-1/8 6419 lbf, 28,565 N
