4004-0430

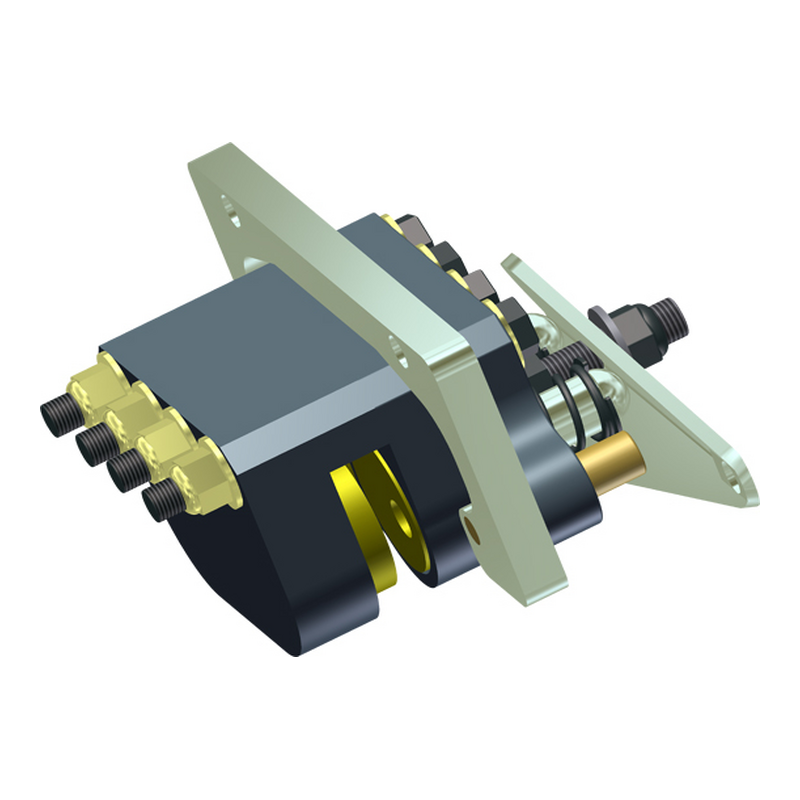

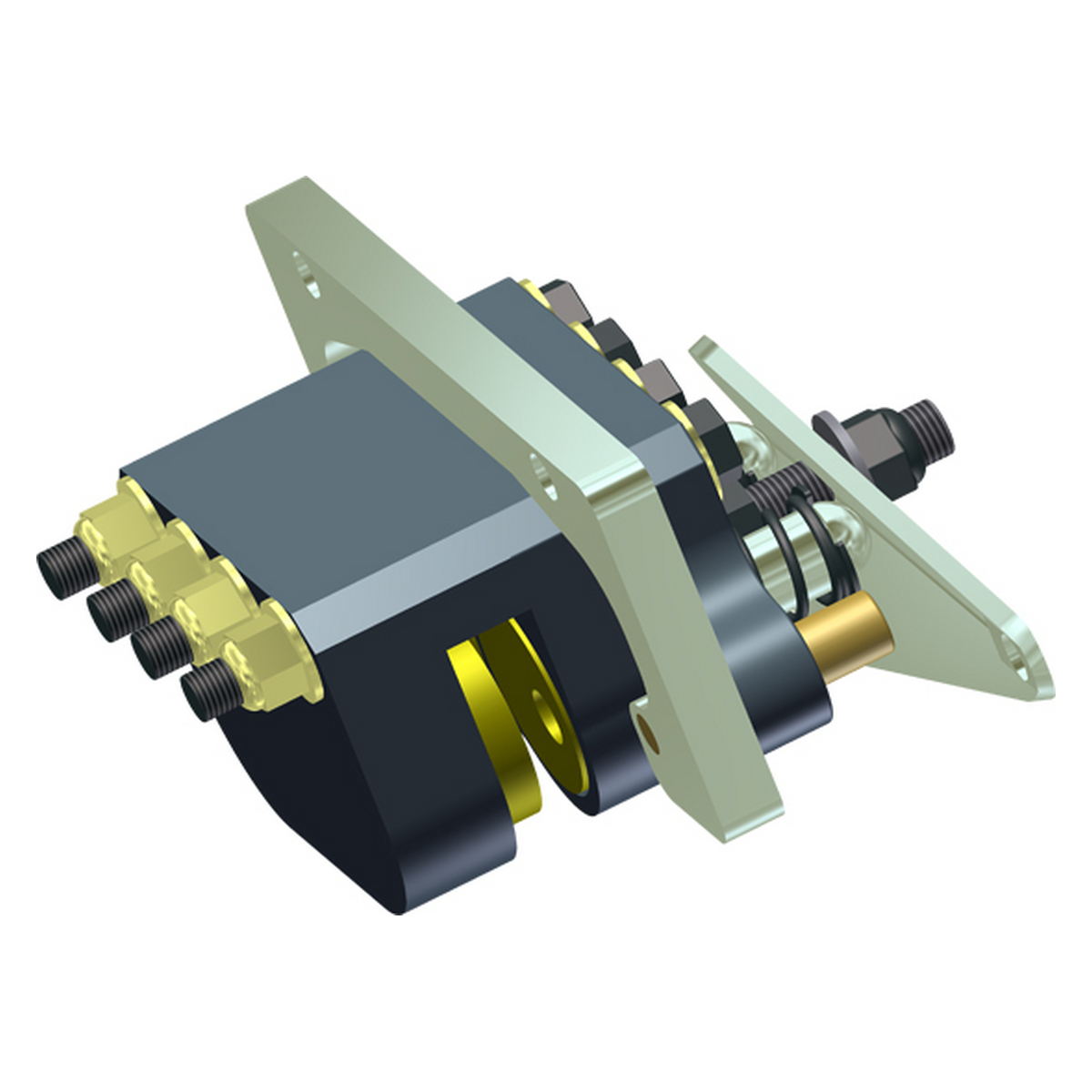

200 unlimited disc series, mechanical single acting caliper disc brake w/ floating bracket, sized for 5/32 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Unlimited Brake Disc Diameter
  • Adjustable Nut for Pad Wear
  • Replaceable Friction Pads (WCB p/n 4000-1052)
  • Non-Asbestos Friction Material
  • U.S. Dept. of Defense Approved Friction Pads
  • Dynamic torque (inch/lb) 7.45 x Lever Force (lb.) x braking radius

Cam Lever Travel Data:

  • Gap between friction pad faces and disc when new = .048" total.
  • Angular movement of lever required to actuate brake when new = 7º 30'.
  • Maximum axial movement without intermediate adjustment = .387".
  • .208" total wear allowed before adjustment of each side.
  • Power Factor: M38F and M47F Series 1X, 200 Series 3.5X
