M200FUL

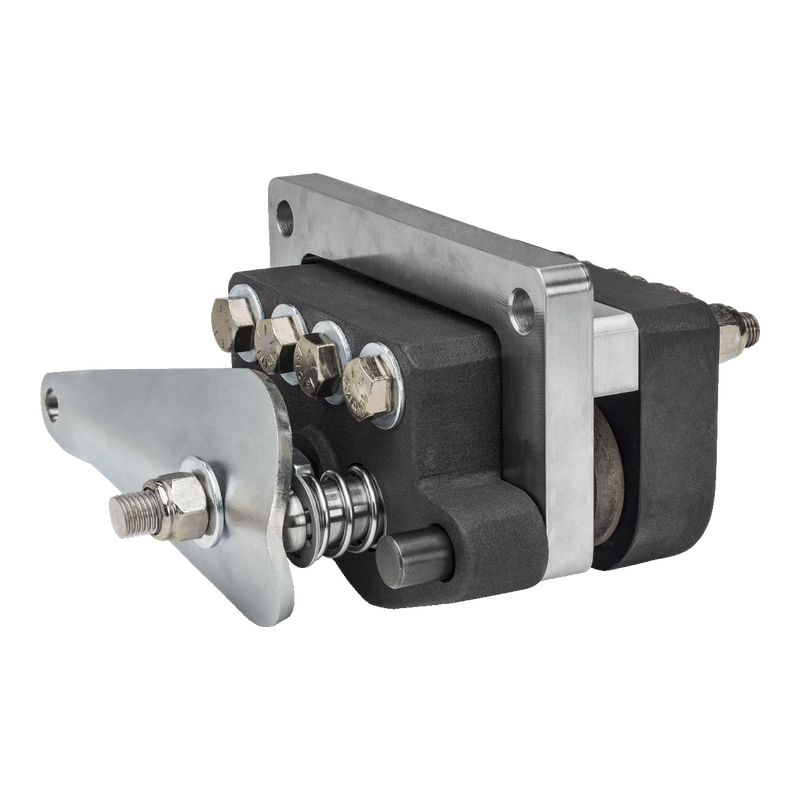

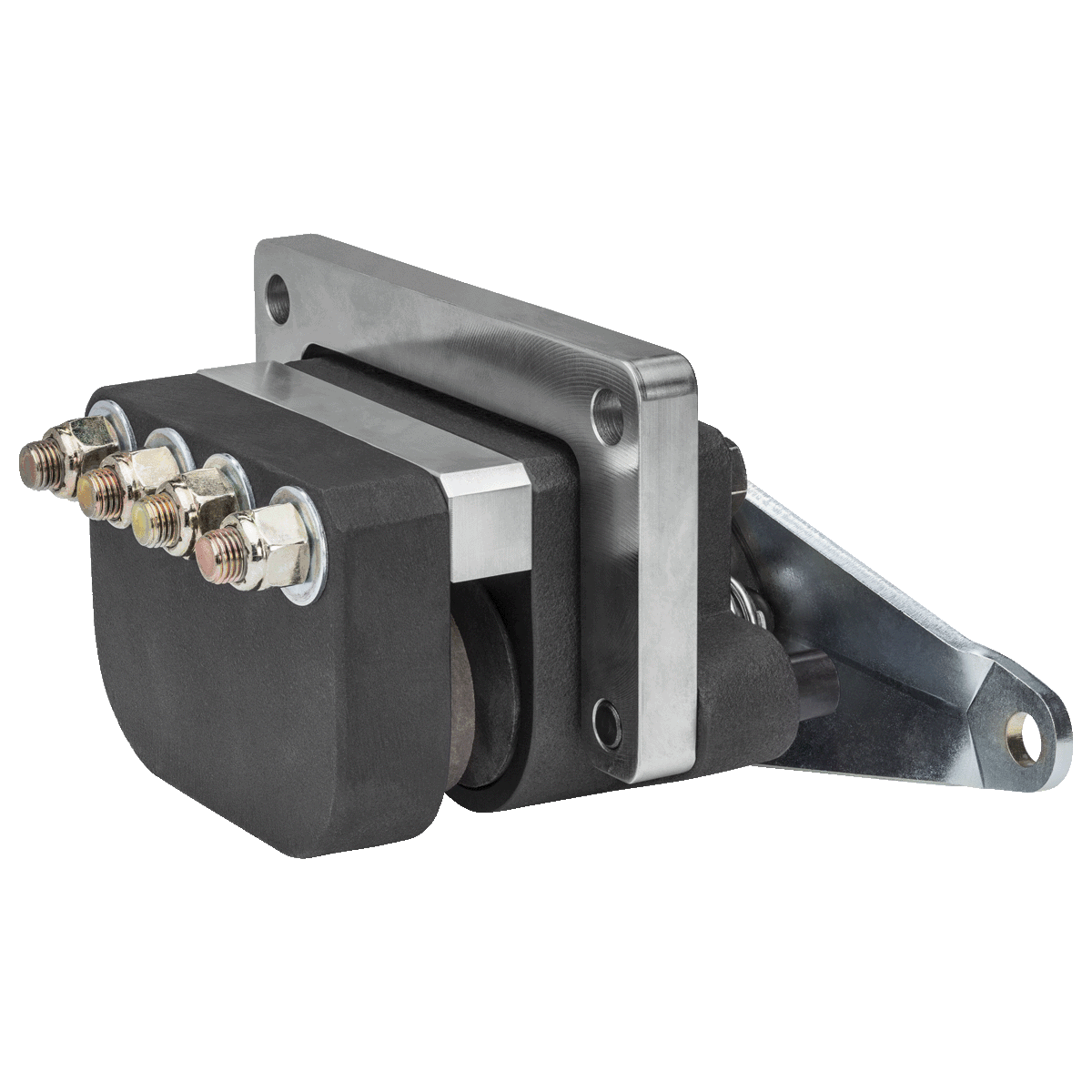

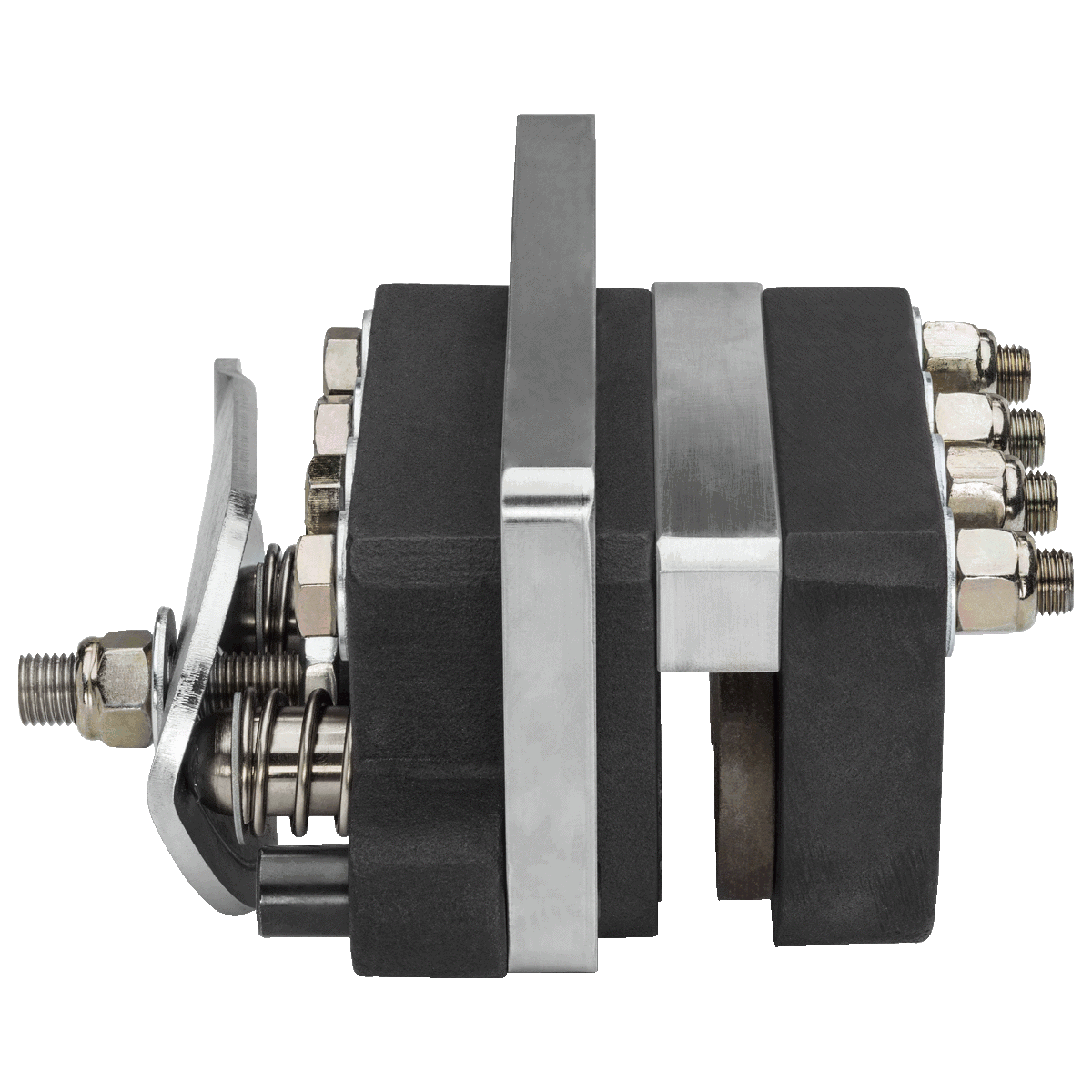

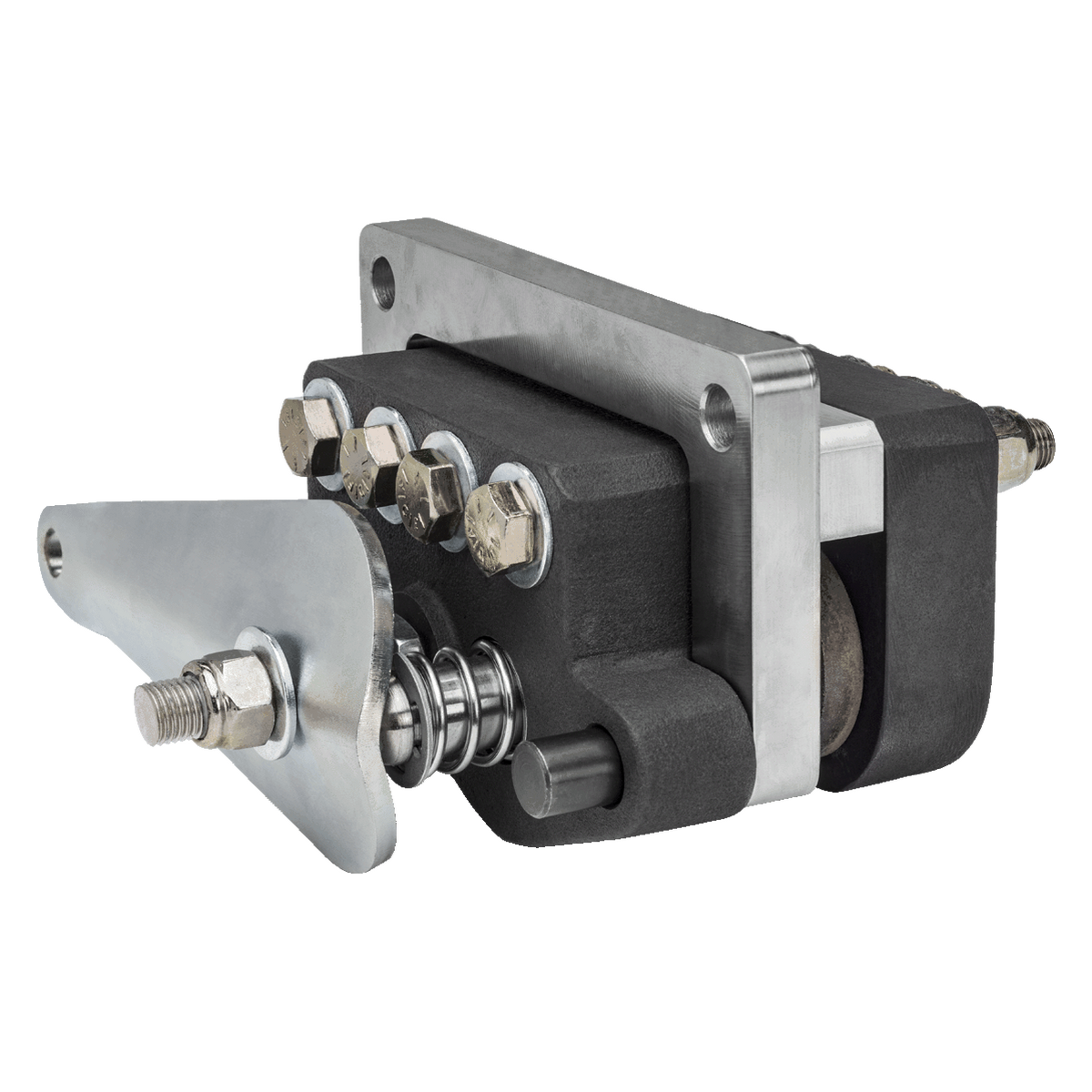

Unlimited Disc Series. We've Redesigned the Popular Mechanical 200 Series to Fit on Disc Diameters of 16 inches and Larger. Fits on Flat Linear Plates Too.
Standard features include: Cast or extruded aluminum construction | Hardcoated housings | Spring retractable piston | Replaceable, non-asbestos friction pads | Unlimited disc diameter, M38, M47, M200UL series | Up to 16 inch disc diameter, M200 series | Zinc plated floating bracket, M38 & M47 series | Machined lever and cam, M38 & M47 series | Stamped, heat treated one piece lever arm and cam, M200 series | Adjustment nut for pad wear
Quick Facts - Dynamic Torque (inch/lb) = 7.45 x Lever Force (lb.) x Braking Radius
| Model | Dynamic Torque lbf/1 lb. Lever Force | Disc Diameter Range, in. | Bore Diameter, in. | Total Friction Pad Area, in. sq. | Maximum Lever Force, lbf. | Disc Diameter, in. | Braking Radius, in. |
|---|---|---|---|---|---|---|---|
| M200UL | 7.45 | Unlimited | 1.625 | 8.0 | 580 | 6.3125 | 2.13 |
| 8.00 | 3.15 | ||||||
| 10.00 | 4.11 | ||||||
| 12.00 | 5.08 | ||||||
| 16.00 | 7.21 | ||||||
| 20.00 | 9.34 | ||||||
| 24.00 | 11.47 | ||||||
| 36.00 | 17.86 |
H200SFUL
Unlimited Disc Series. Same Mounting. Hydraulic Service. 1500 PSI (103 Bar) Maximum Pressure.
M200UL Series
| Product # | Model # | Description | Additional Info | Disc Thick. (in.) | Lever Force (lb.) | |
|---|---|---|---|---|---|---|
| 4004-0430 | M200AFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 5/32 | 580 |
$395.77
|
| 4004-0431 | M200BFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 1/4 | 580 |
$398.78
|
| 4004-0432 | M200LFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 3/8 | 580 |
$418.28
|
| 4004-0433 | M200EFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 1/2 | 580 |
$403.61
|
| 4004-0434 | M200JFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 5/8 | 580 |
$405.77
|
| 4004-0435 | M200TFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 3/4 | 580 |
$409.29
|
| 4004-0436 | M200OFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 1.00 | 580 |
$413.47
|
| 4004-0437 | M200QFUL | Single Acting, Floating Mount. Use Fixed Disc | Dual Spring Retractable Pistons | 1-1/8 | 580 |
$415.19
|
