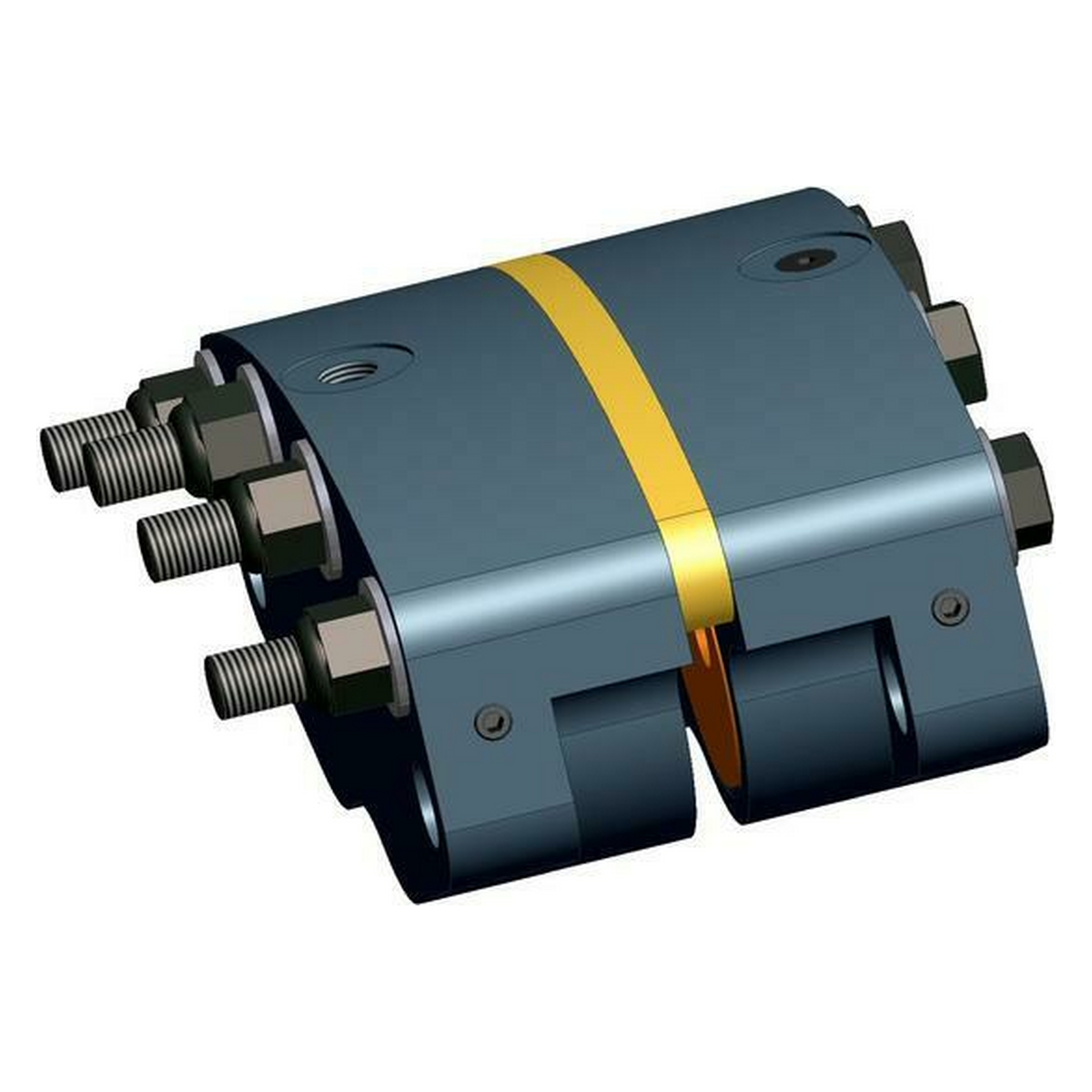

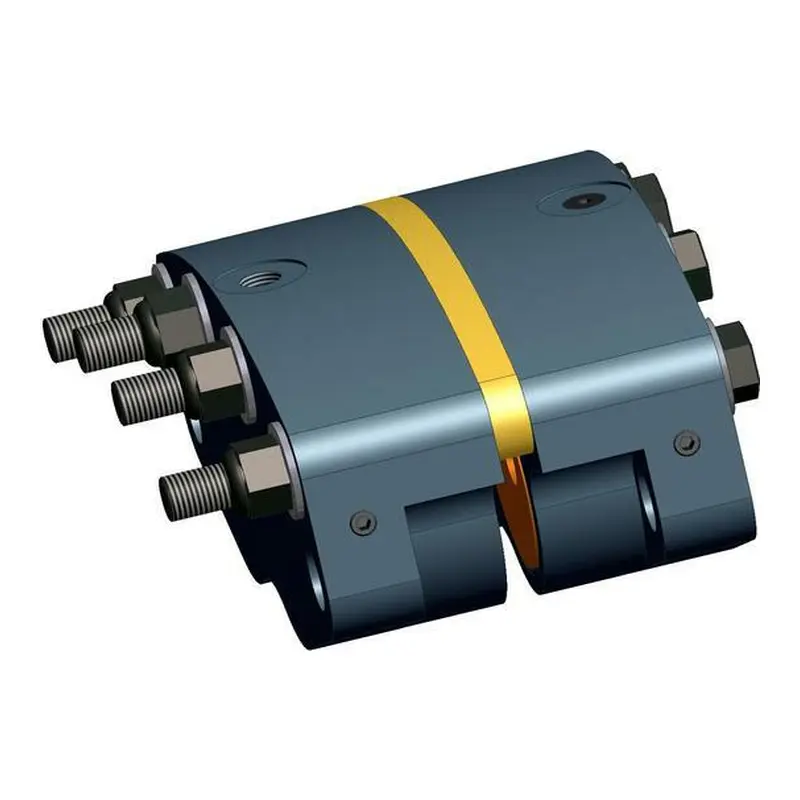

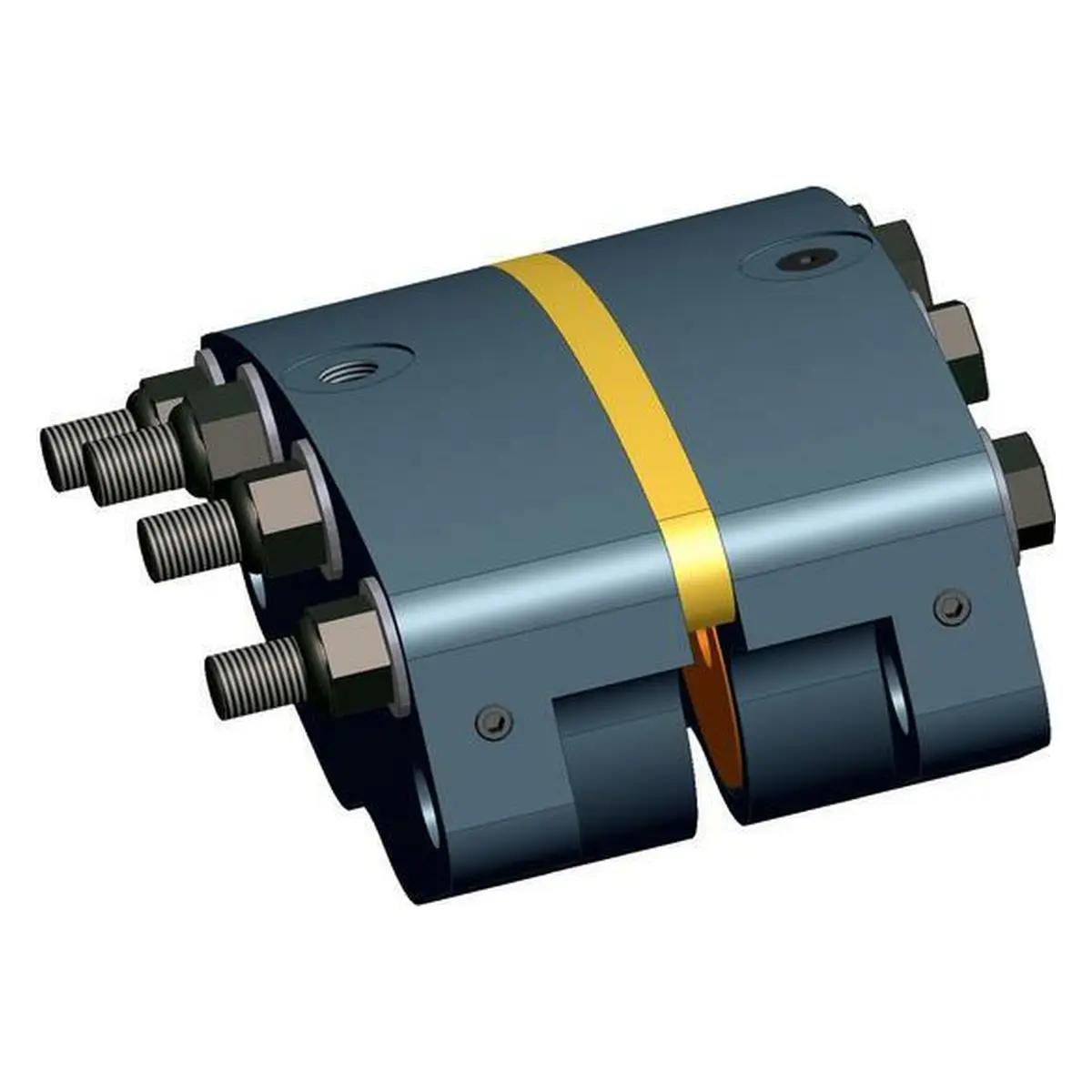

4004-0100
Model: P200DAR
200 series, pneumatic double acting caliper disc brake w/spring retractable pistons, sized for 5/32 inch thick brake disc.
- Aluminum Construction
- Hardcoated
- Fits on Brake Discs up to 16" Diameter
- Replaceable Friction Pads (WCB p/n 4000-1052)
- Dept. of Defense Approved Friction Pads
- Dynamic torque (inch/lb): 288 lbf per 100 psi x braking radius
- Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
Attributes
| Model # | P200DAR |
| Description | Double Acting, Fixed Mount. Use Fixed or Floating Disc |
| Additional Info | Quad Spring Retractable Pistons |
| Disc Thick. (in.) | 5/32 |
| Fluid Displacement | 0.124 cu. in. |
| Fluid Type | Air |
| Max. Pressure, PSI | 200 |
| Piston Dia. | 1.625 in. |
| Seals | Buna-N |
| Total Pad Area | 8.00 sq. in. |
| Wearable Friction Material | 1.66 cu. in. |
