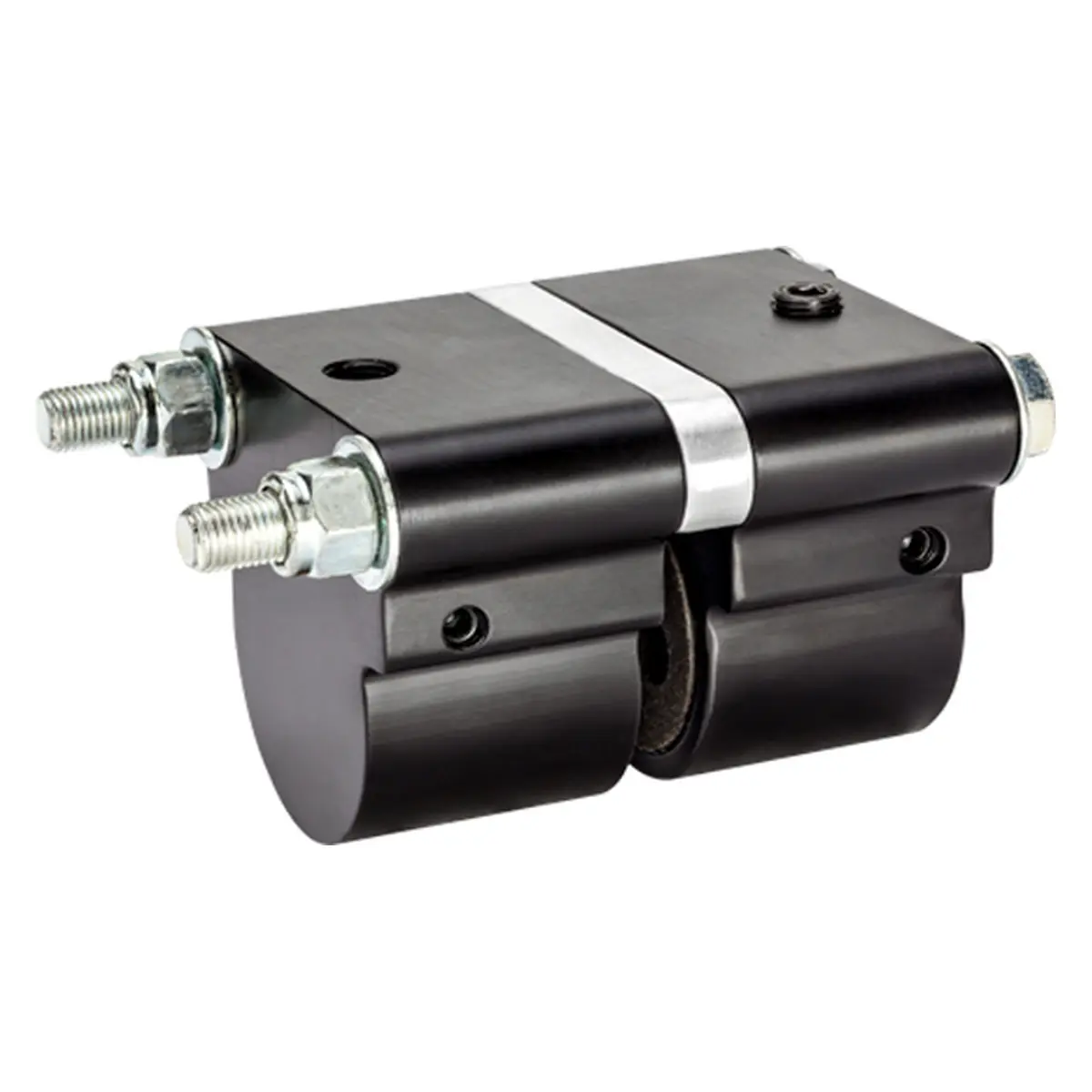

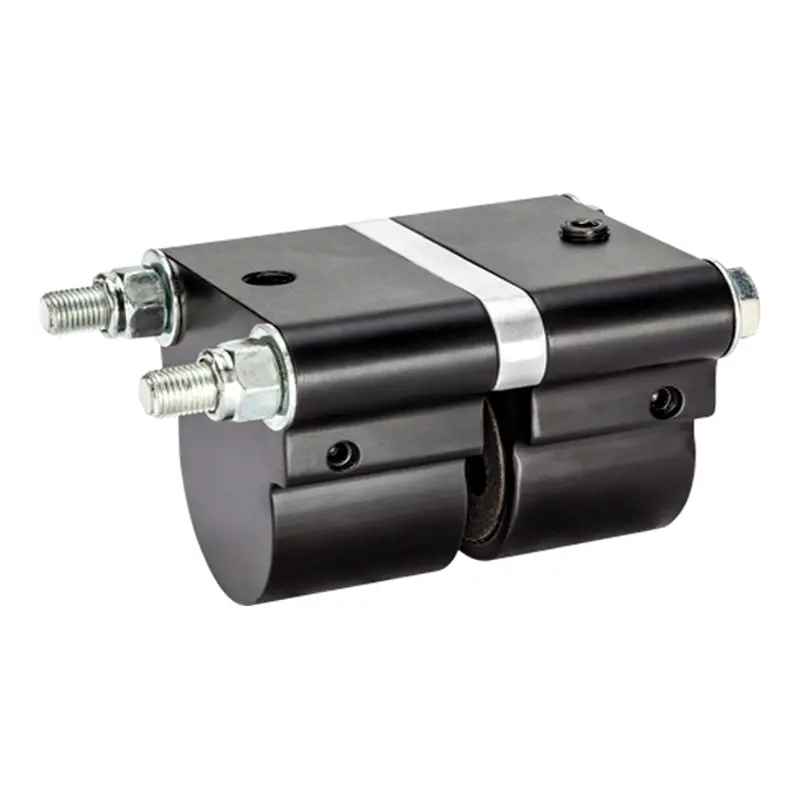

4004-0030

Model: P47DL

47 series, pneumatic double acting caliper disc brake sized for 3/8 inch thick brake disc.

  • Aluminum Construction
  • Hardcoated
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads (WCB p/n 4000-1052)
  • Dept. of Defense Approved Friction Pads
  • Dynamic torque (inch/lb): 144 lbf per 100 psi x braking radius
  • Power Factor: 200 Series 4X, 38 Series 1X, 47 Series 2X
Additional Info Dual Non-Retractable Pistons
Description Double Acting, Fixed Mount. Use Fixed or Floating Disc
Disc Thick. (in.) 3/8
Fluid Displacement 0.062 cu. in.
Fluid Type Air
Max. Pressure, PSI 200
Model # P47DL
Piston Dia. 1.625 in.
Product 4004-0030
Seals Buna-N
Total Pad Area 4.00 sq. in.
Wearable Friction Material 0.83 cu. in.
