4004-0233

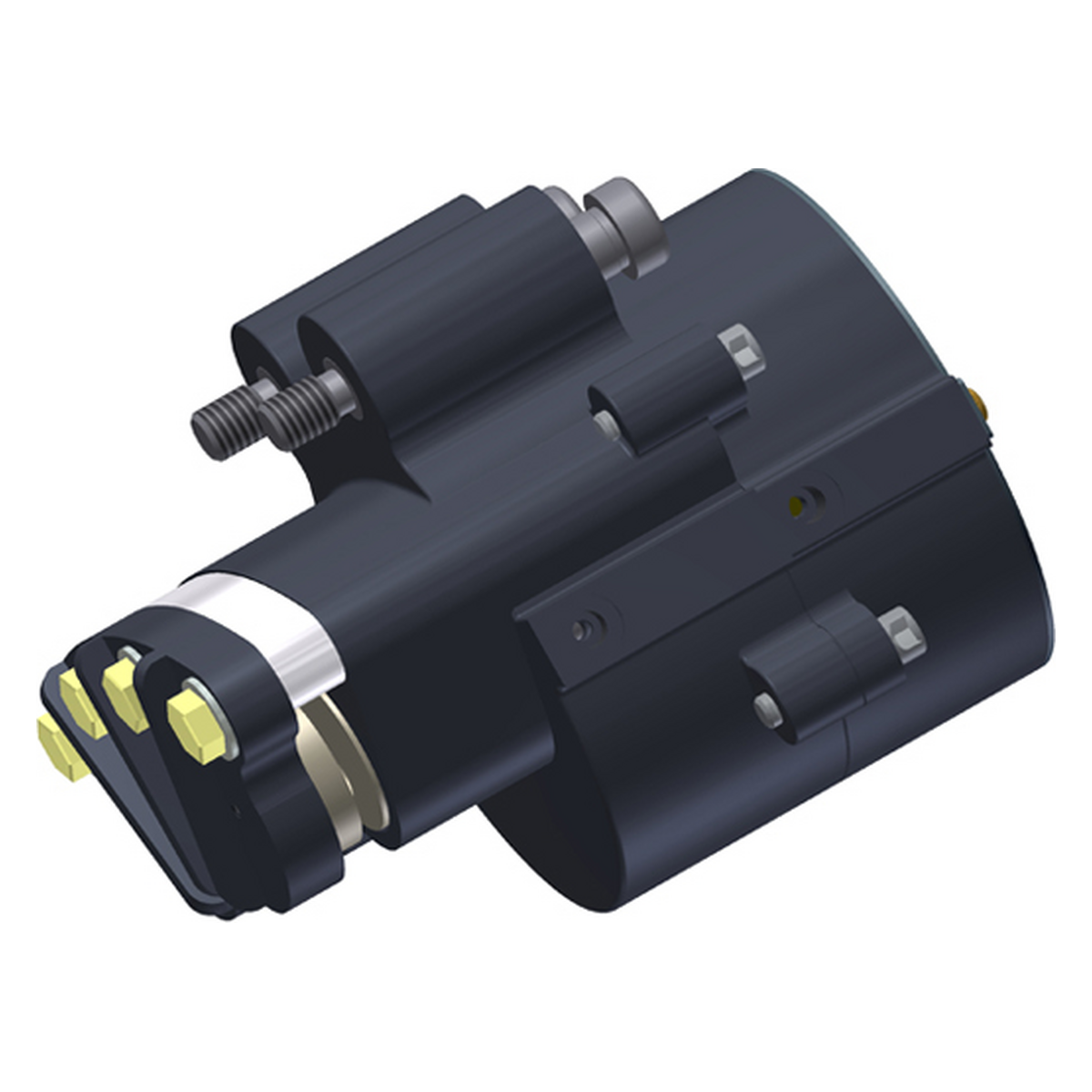

Model: PFS200LF

200 series, pneumatic spring applied, single acting caliper disc brake sized for 3/8 inch thick brake disc.

  • 85 PSI Retractable
  • Aluminum Construction
  • Hardcoated
  • Dual Belleville Disc Spring Stacks
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs up to 16 inch Diameter
  • Replaceable Friction Pads
  • Non-Asbestos Friction Material
  • .45 Coefficient of Friction
  • 929 lb. Maximum Tangential Force
  • 2065 lb. Maximum Clamping Force
  • 6626 in. lb. F using 16 inch Disc Diameter
Additional Info Dual Pistons. Spring Applied 85 PSI Release
Description Single Acting, Floating Mount. Use Fixed Disc
Disc Thick. (in.) 3/8
Model # PFS200LF
Tangential Force 929 lbf (4132 N)
