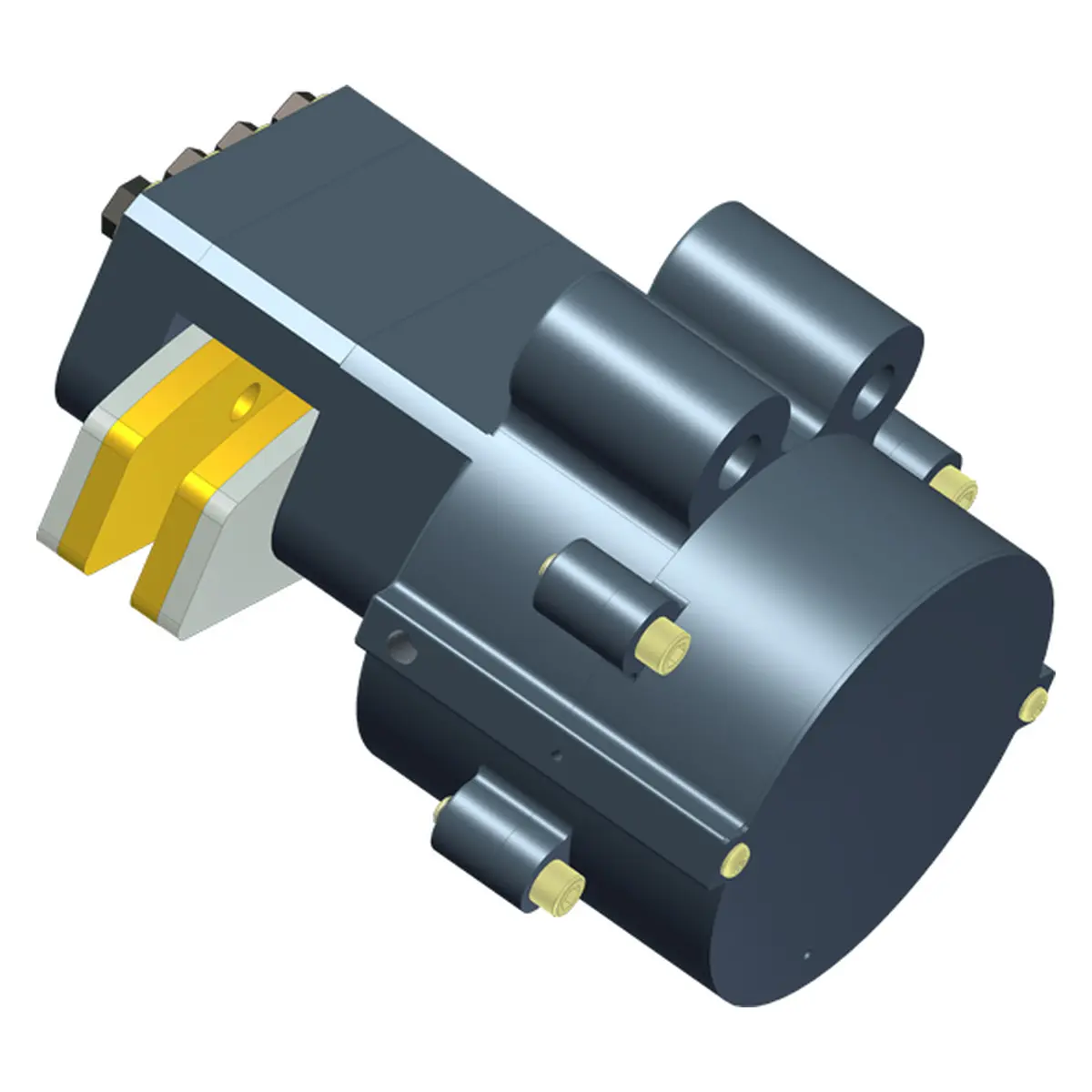

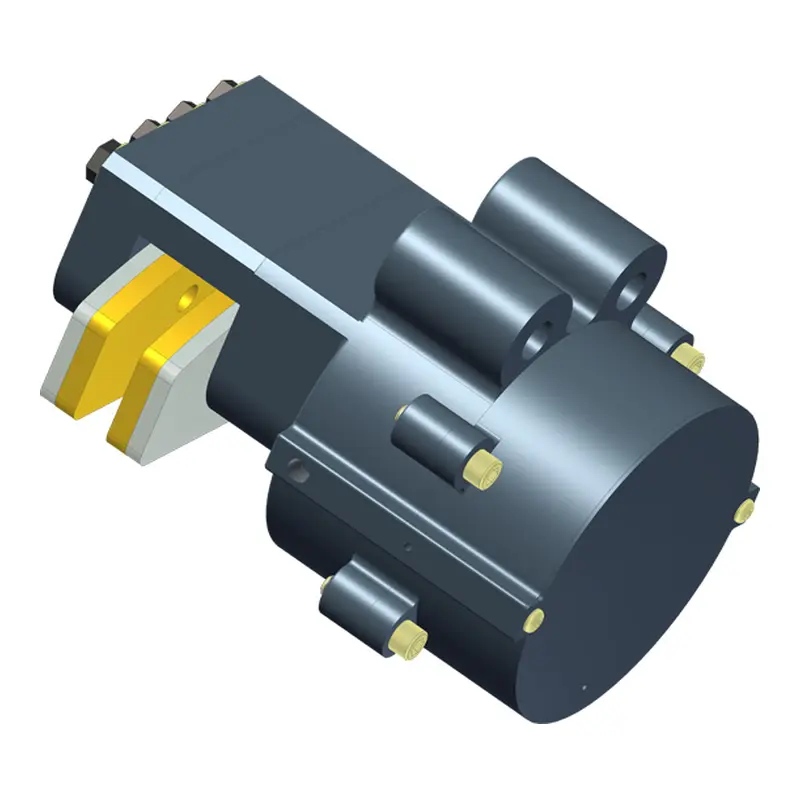

4005-0139

Model: PFS200AFUL-EP

200 extended friction pad series, pneumatic spring applied, single acting caliper disc brake sized for 5/32 inch thick brake disc.

  • 23.89 sq. in. total pad area
  • 7.72 cu. in. wearable material
  • 85 PSI Retractable
  • Aluminum Construction
  • Hardcoated
  • Dual Belleville Disc Spring Stacks
  • Available W.C. Branham Brake Discs: 12" and 16" Diameters
  • Fits on Brake Discs from 12" to Unlimited Diameter
  • Replaceable Friction Pads
  • Non-Asbestos Friction Material
  • .45 Coefficient of Friction
  • 929 lb. Maximum Tangential Force
  • 2065 lb. Maximum Clamping Force
  • 13,129 in. lb. F using 30-inch Disc Diameter
