4004-0227

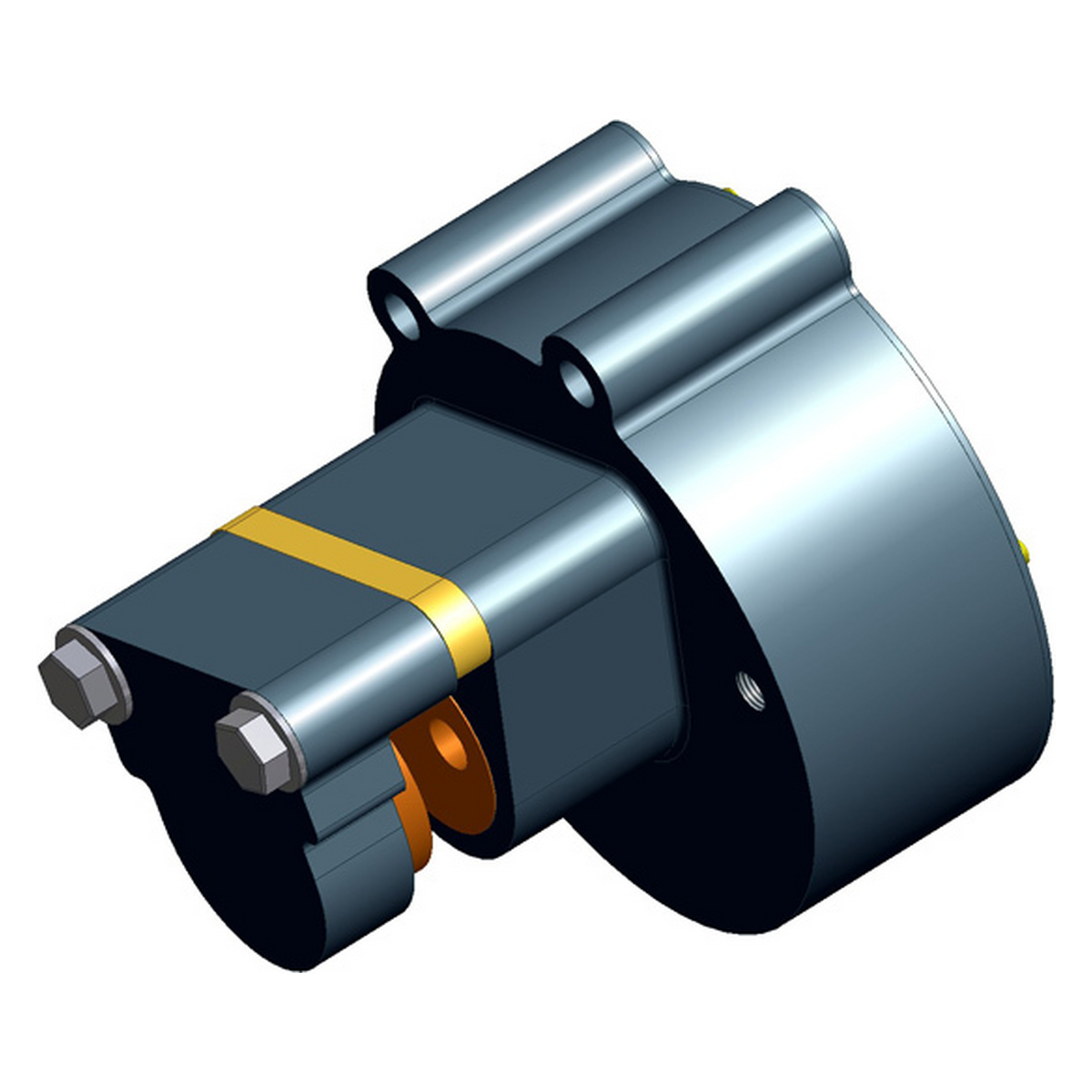

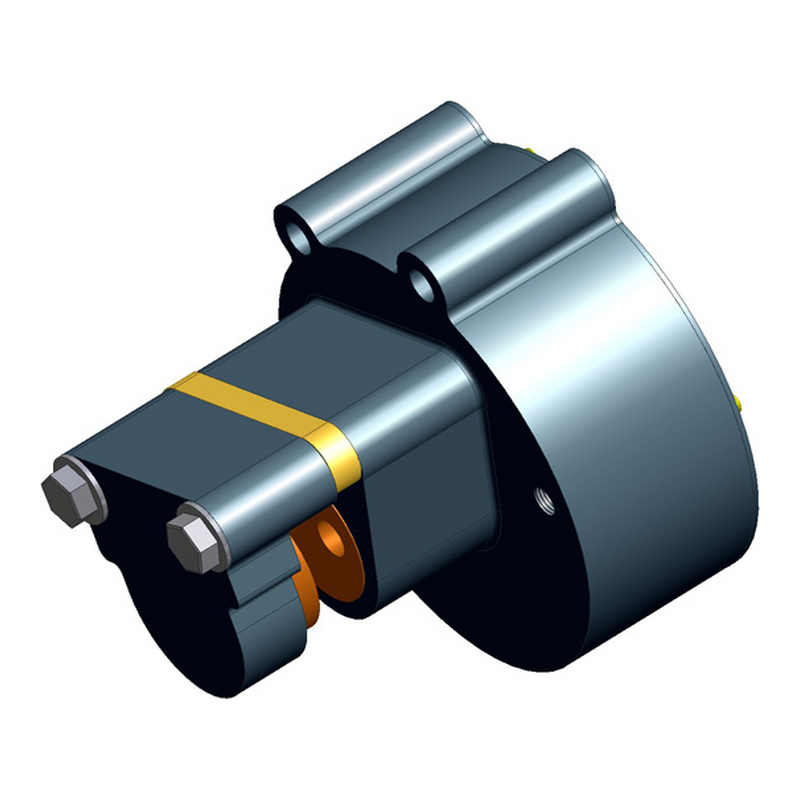

Model: PFS47LF

47 series, pneumatic spring applied, single acting caliper disc brake sized for 1/2 inch thick brake disc.

  • 85 PSI Retractable Release Pressure
  • Aluminum Construction
  • Hardcoated
  • Belleville Disc Spring Stack
  • Available W.C. Branham Brake Discs: 6 5/16", 8", 10", 12" Diameter
  • Fits on Brake Discs with Unlimited Diameter
  • Replaceable Friction Pads
  • .45 Coefficient of Friction
  • Non-Asbestos Friction Material
  • 1033 lb. Clamping Force Maximum
  • 465 lb. Tangential Force Maximum
  • 6570 in. lb. Braking Torque using 30 inch Diameter Brake Disc
