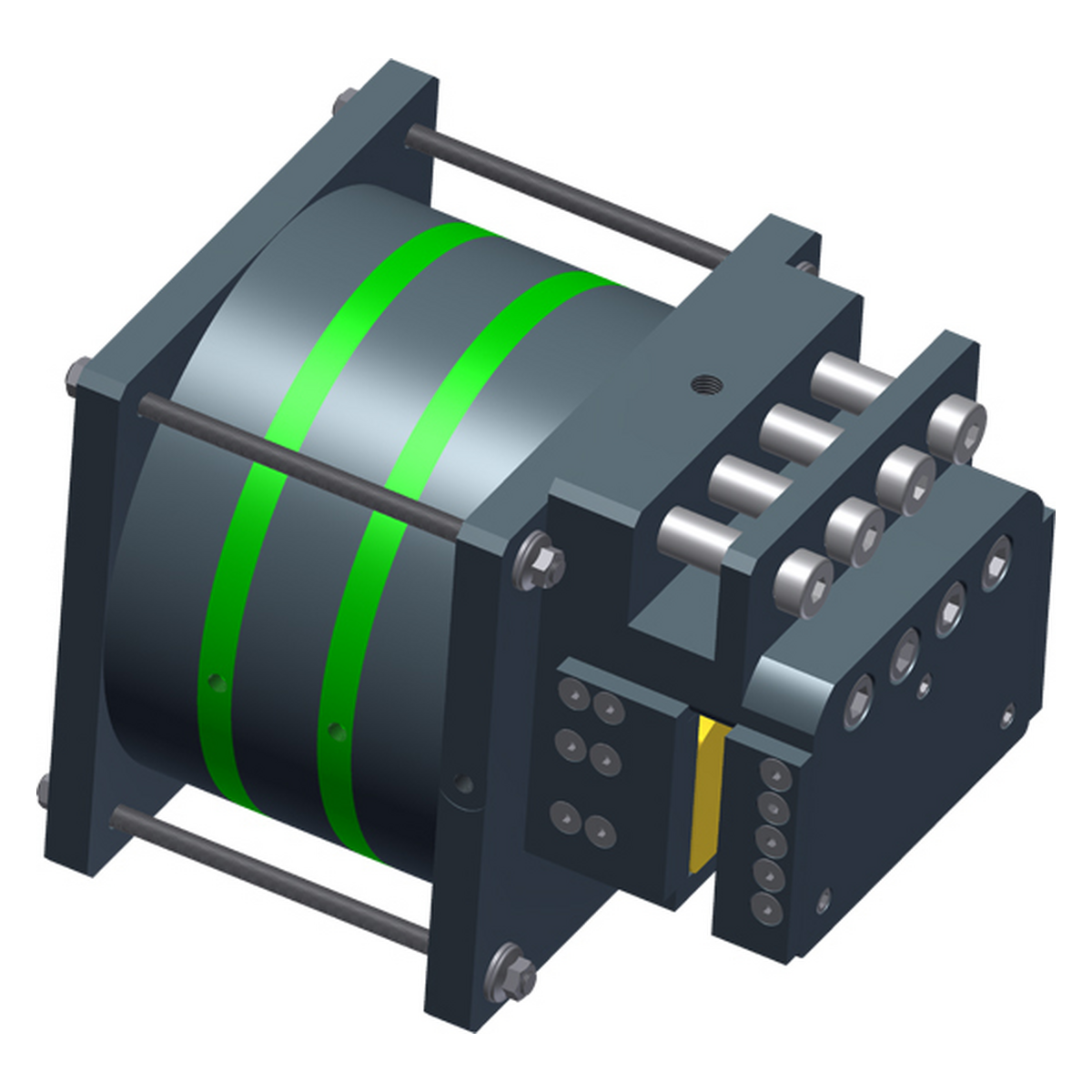

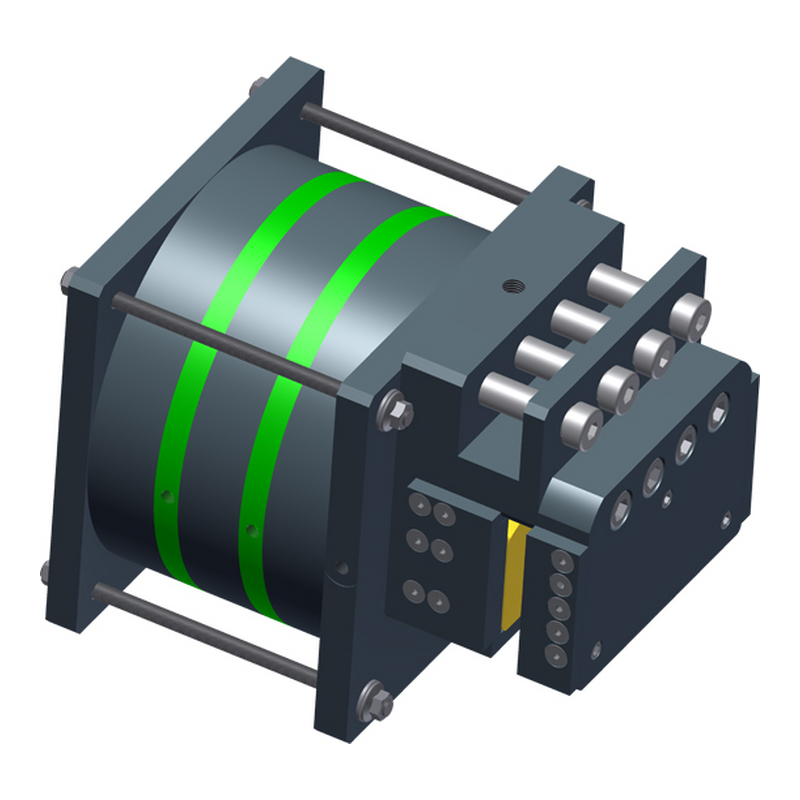

522 series, pneumatic spring applied, single acting caliper disc brake sized for 3/4 inch thick brake disc.
- 85 PSI Retractable Release Pressure
- Aluminum Construction
- Dual Belleville Disc Spring Stacks
- Quick Change Pad Feature
- Fits on Brake Discs Diameters from 20 inches to Unlimited Diameter
- .45 Coefficient of Friction Pad #9511023
- Non-Asbestos Friction Material
- Spring Stacks in Parallel
- Buna-N Seals
- 12,236 lb. Maximum Tangential Force
- 220,652 in. lbs. F using 40 inch Disc Diameter
- 27,192 lb. Clamping Force
