4304-0401

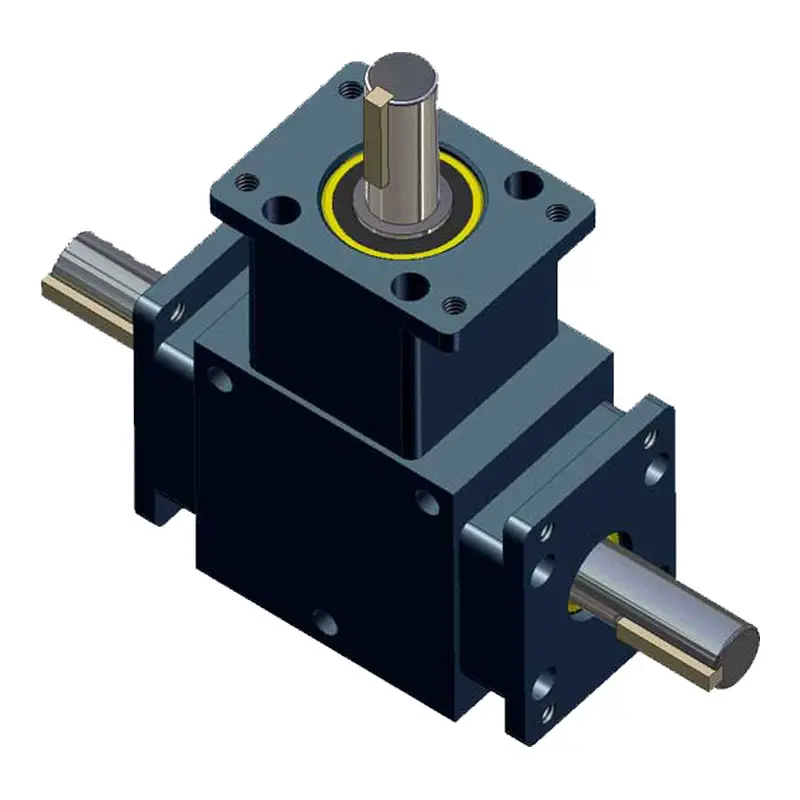

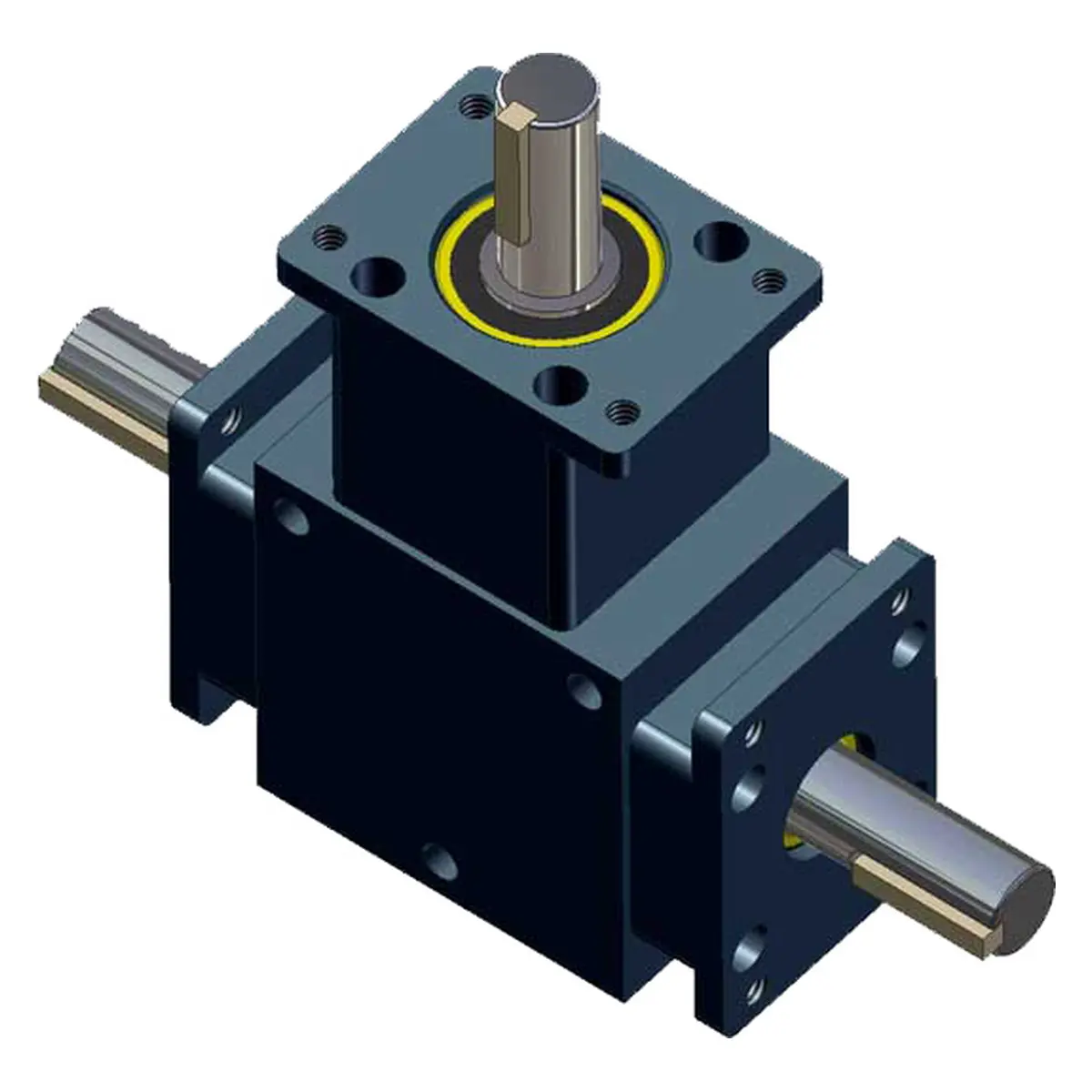

3SB2.125/1:1FMSBM.625 Spiral Bevel Gearbox

Spiral Bevel 3-Way Right Angle Gearbox with 2.125 in. Wide Housing, 1:1 Ratio, Flange and Side Base Mounting and .625 in. Diameter Shafts

  • Sealed, Leak Proof Gearcase
  • Machined Aluminum Construction
  • Anodized Gearcase
  • Carbon Steel Shafts
  • 8620 Heat-Treated Case-Hardened Gears
  • Double Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube-G
  • (3) Keys Included

Attributes

Housing Width (in.)2.125
# of Shafts3-Way
Shaft Dia..625 in.
# Ball Bearings6
Max Torque (in. lb.)82
Speed Rating1.8 HP @ 1800 RPM
Mounting TypeFlange & Side Base
Mounting(12) 1/4-20 Threads
Key Size3/16
CrossoverMitrpak T-101; Zero-Max Crown C109806
Click image to enlarge
