4304-0402

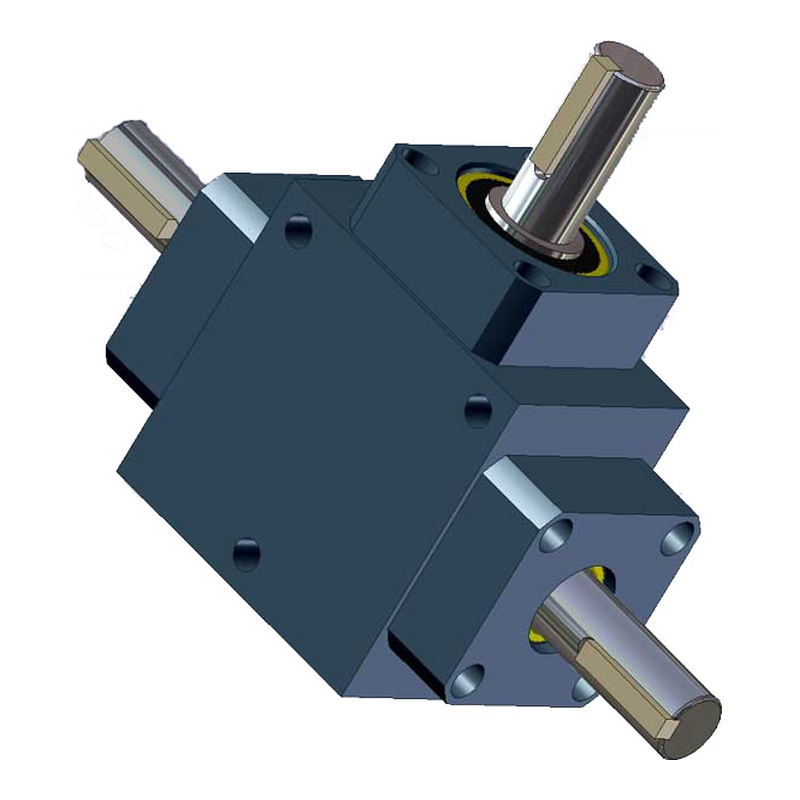

Model: 3SB2.125/1:1SBM.625 -Spiral Bevel 3-Way Right Angle Gearbox with 2.125 in. Wide Housing, 1:1 Ratio, Side Base Mounting, and .625 in. Diameter Shafts

Spiral Bevel 3-Way Right Angle Gearbox with 2.125 in. Wide Housing, 1:1 Ratio, Side Base Mounting, and .625 in. Diameter Shafts

  • Sealed, Leak Proof Gearcase
  • Machined Aluminum Construction
  • Anodized Gearcase
  • Carbon Steel Shafts
  • 8620 Heat-Treated Case-Hardened Gears
  • Double Sealed Ball Bearings
  • Pre-Lubricated w/Magnalube-G
  • (3) Keys Included
# of Ball Bearings 6
# of Shafts 3-Way
Housing Width (in.) 2.125
Key Size 3/16
Max RPM 1800
Max Torque, (in.lb.) 82
Model # 3SB2.125/1:1SBM.625
Mounting Type Side Base
Ratio 1:1
Shaft Dia. .625 in.
Speed Rating 1.8 HP @ 1800 RPM
$484.36
