Guided Cable Cylinders

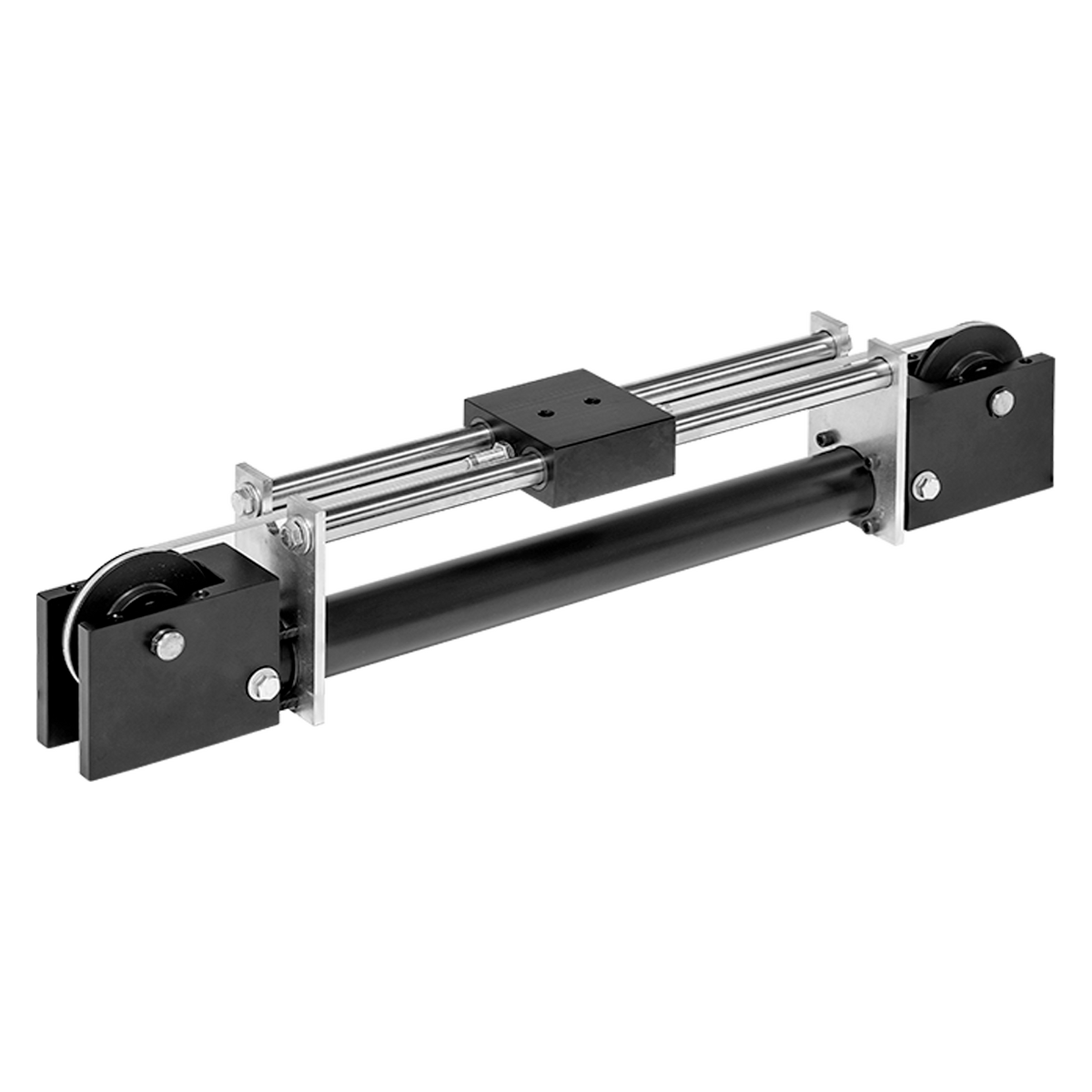

GCC - Guided Cable Cylinders from W.C. Branham consist of a double acting cable cylinder and a pre-engineered/packaged guide and load bearing support system for self guiding and self supported loads. GCCs can be configured with reed switches, auto tensioners and caliper disc brake combinations for position holding.
- Competitively priced with lower costs per inch of stroke
- Journal guide bearings
- Linear ball bearings optional
W.C. Branham has been manufacturing cable cylinders since 1981.
Specifications
(click  for more details)
Showing Imperial Measurements - Switch to Metric Measurements
- 9 bore sizes from 1/2 to 5 inches, Including 500 psi rated 2 inch bore
- Standard fixed orifice cushioning for 3/4 and 1 inch bores, no cushion for 1/2 bore
- Standard adjustable cushioning for all other sizes
- Reed switch and piston magnet options
- Lightweight, durable hardcoated I.D./O.D. aluminum tube
- Standard Buna-N seals. Viton® brand seals available
- Mil-spec rated cable providing millions of continuous cycles
- 5:1 safety factor
- Low breakaway configurations
Showing Metric Measurements - Switch to Imperial Measurements
Sorry, no metric information available for this product group. Showing imperial measurements instead...
- 9 bore sizes from 1/2 to 5 inches, Including 500 psi rated 2 inch bore
- Standard fixed orifice cushioning for 3/4 and 1 inch bores, no cushion for 1/2 bore
- Standard adjustable cushioning for all other sizes
- Reed switch and piston magnet options
- Lightweight, durable hardcoated I.D./O.D. aluminum tube
- Standard Buna-N seals. Viton® brand seals available
- Mil-spec rated cable providing millions of continuous cycles
- 5:1 safety factor
- Low breakaway configurations
Products Available
| |
Product # |
Name |
Bore, in. |
Option(s) |
Force@100 PSI, lbs. |
Eff. Area, in.2 |
|
1050-0800 |
GCC1050 |
1/2 |
None |
19 |
.19 |
|
1070-0800 |
GCC1070 |
3/4 |
None |
44 |
.44 |
|
1070-0804 |
GCC1070T |
3/4 |
Tensioner |
44 |
.44 |
|
1070-0852 |
GCC1070RS |
3/4 |
Reed Switches |
44 |
.44 |
|
1070-0853 |
GCC1070TRS |
3/4 |
Tensioner, Reed Switches |
44 |
.44 |
|
1070-0858 |
GCC1070M |
3/4 |
Piston Magnet |
44 |
.44 |
|
1101-0800 |
GCC1101 |
1.0 |
None |
78 |
.78 |
|
1101-0801 |
GCC1101RS |
1.0 |
Reed Switches |
78 |
.78 |
|
1101-0820 |
GCC1101T2 |
1.0 |
2 Tensioners |
78 |
.78 |
|
1101-0821 |
GCC1101T |
1.0 |
Tensioner |
78 |
.78 |
|
1101-0824 |
GCC1101T2RS |
1.0 |
2 Tensioners, Switches |
78 |
.78 |
|
1101-0826 |
GCC1101M |
1.0 |
Piston Magnet |
78 |
.78 |
|
1151-0800 |
GCC1151 |
1.5 |
None |
174 |
1.74 |
|
1151-0801 |
GCC1151RS |
1.5 |
Reed Switches |
174 |
1.74 |
|
1151-0804 |
GCC1151TBRS |
1.5 |
Tensioner, Brake, Switches |
174 |
1.74 |
|
1151-0806 |
GCC1151TB |
1.5 |
Tensioner, Brake |
174 |
1.74 |
|
1151-0807 |
GCC1151T |
1.5 |
Tensioner |
174 |
1.74 |
|
1151-0808 |
GCC1151TRS |
1.5 |
Tensioner, Switches |
174 |
1.74 |
|
1151-0818 |
GCC1151TBM |
1.5 |
Tensioner, Brake, Magnet |
174 |
1.74 |
|
1203-0800 |
GCC1203 |
2.0 |
None |
309 |
3.09 |
|
1203-0801 |
GCC1203T |
2.0 |
Tensioner |
309 |
3.09 |
|
1203-0803 |
GCC1203TBRS |
2.0 |
Tensioner, Brake, Switches |
309 |
3.09 |
|
1203-0804 |
GCC1203RS |
2.0 |
Reed Switches |
309 |
3.09 |
|
1203-0806 |
GCC1203TB |
2.0 |
Tensioner, Brake |
309 |
3.09 |
|
1203-0807 |
GCC1203TRS |
2.0 |
Tensioner, Switches |
309 |
3.09 |
|
1203-0808 |
GCC1203M |
2.0 |
Piston Magnet |
309 |
3.09 |
|
1203-0812 |
GCC1203T2 |
2.0 |
Tensioners, 2 |
309 |
3.09 |
|
1203-0813 |
GCC1203T2RS |
2.0 |
2 Tensioners; Switches |
309 |
3.09 |
|
1206-0800 |
GCC1206 |
2.0 |
500 PSI, Heavy Duty |
309 |
3.09 |
|
1206-0801 |
GCC1206RS |
2.0 |
500 PSI, Reed Switches |
309 |
3.09 |
|
1206-0803 |
GCC1206M |
2.0 |
500 PSI, Piston Magnet |
309 |
3.09 |
|
1206-0805 |
GCC1206T |
2.0 |
500 PSI, Tensioner |
309 |
3.09 |
|
1206-0806 |
GCC1206T2 |
2.0 |
500 PSI, 2 Tensioners |
309 |
3.09 |
|
1206-0807 |
GCC1206TRS |
2.0 |
500 PSI, Tensioner, Switches |
309 |
3.09 |
|
1206-0808 |
GCC1206T2RS |
2.0 |
500 PSI, 2 Tens., Switches |
309 |
3.09 |
|
1206-0810 |
GCC1206TBRS |
2.0 |
500, Tens., Brake, Switches |
309 |
3.09 |
|
1206-0820 |
GCC1206TB |
2.0 |
500 PSI, Tensioner, Brake |
309 |
3.09 |
|
1251-0800 |
GCC1251 |
2.5 |
None |
486 |
4.86 |
|
1251-0802 |
GCC1251RS |
2.5 |
Reed Switches |
486 |
4.86 |
|
1251-0806 |
GCC1251T |
2.5 |
Tensioner |
486 |
4.86 |
|
1251-0807 |
GCC1251TRS |
2.5 |
Tensioner, Switches |
486 |
4.86 |
|
1251-0810 |
GCC1251T2 |
2.5 |
Tensioners, 2 |
486 |
4.86 |
|
1251-0811 |
GCC1251TB |
2.5 |
Tensioner, Brake |
486 |
4.86 |
|
1251-0812 |
GCC1251M |
2.5 |
Piston Magnet |
486 |
4.86 |
|
1251-0813 |
GCC1251TBRS |
2.5 |
Tensioner, Brake, Switches |
486 |
4.86 |
|
1251-0814 |
GCC1251T2RS |
2.5 |
Tensioners,2; Switches |
486 |
4.86 |
|
1301-0800 |
GCC1301 |
3.0 |
None |
699 |
6.99 |
|
1301-0801 |
GCC1301TRS |
3.0 |
Tensioner, Switches |
699 |
6.99 |
|
1301-0802 |
GCC1301T |
3.0 |
Tensioner |
699 |
6.99 |
|
1301-0803 |
GCC1301RS |
3.0 |
Reed Switches |
699 |
6.99 |
|
1301-0805 |
GCC1301T2 |
3.0 |
Tensioners, 2 |
699 |
6.99 |
|
1301-0806 |
GCC1301M |
3.0 |
Piston Magnet |
699 |
6.99 |
|
1301-0807 |
GCC1301TB |
3.0 |
Tensioner, Brake |
699 |
6.99 |
|
1301-0808 |
GCC1301T2RS |
3.0 |
Tensioner, Brake |
699 |
6.99 |
|
1301-0809 |
GCC1301TBRS |
3.0 |
Tensioner, Brake, Switches |
699 |
6.99 |
|
1401-0800 |
GCC1401 |
4.0 |
None |
1249 |
12.49 |
|
1401-0801 |
GCC1401RS |
4.0 |
Reed Switches |
1249 |
12.49 |
|
1401-0802 |
GCC1401T |
4.0 |
Tensioner |
1249 |
12.49 |
|
1401-0805 |
GCC1401T2 |
4.0 |
Tensioners, 2 |
1249 |
12.49 |
|
1401-0806 |
GCC1401M |
4.0 |
Piston Magnet |
1249 |
12.49 |
|
1401-0807 |
GCC1401TRS |
4.0 |
Tensioner, Switches |
1249 |
12.49 |
|
1401-0808 |
GCC1401T2RS |
4.0 |
Tensioners,2; Switches |
1249 |
12.49 |
|
1401-0809 |
GCC1401TB |
4.0 |
Tensioner, Brake |
1249 |
12.49 |
|
1401-0810 |
GCC1401TBRS |
4.0 |
Tensioner, Brake, Switches |
1249 |
12.49 |
|
1401-0820 |
GCC1401TB |
4.0 |
Tensioner, Brake |
1249 |
12.49 |
|
|
